Ubiquiti U7-Pro-XGS Access Point Wi‑Fi 7 Tri Band (2.4 & 5 & 6GHz) Single Kit Black

The Ubiquiti U7-Pro-XGS Access Point is an advanced networking solution that supports WiFi 7 with the capability to operate at the 6 GHz frequency. This innovative technology offers speeds and performance that surpass previous generations, allowing simultaneous connection of more than 500 devices. With 8 spatial streams, it ensures excellent coverage and network stability.

Key Features

WiFi 7 Technology (802.11be): Support for simultaneous operation on three frequency bands (2.4 GHz, 5 GHz, and 6 GHz), offering higher speeds and reduced latency.

Multi-user support: Ability to serve over 300 concurrent devices, ideal for high-density user environments.

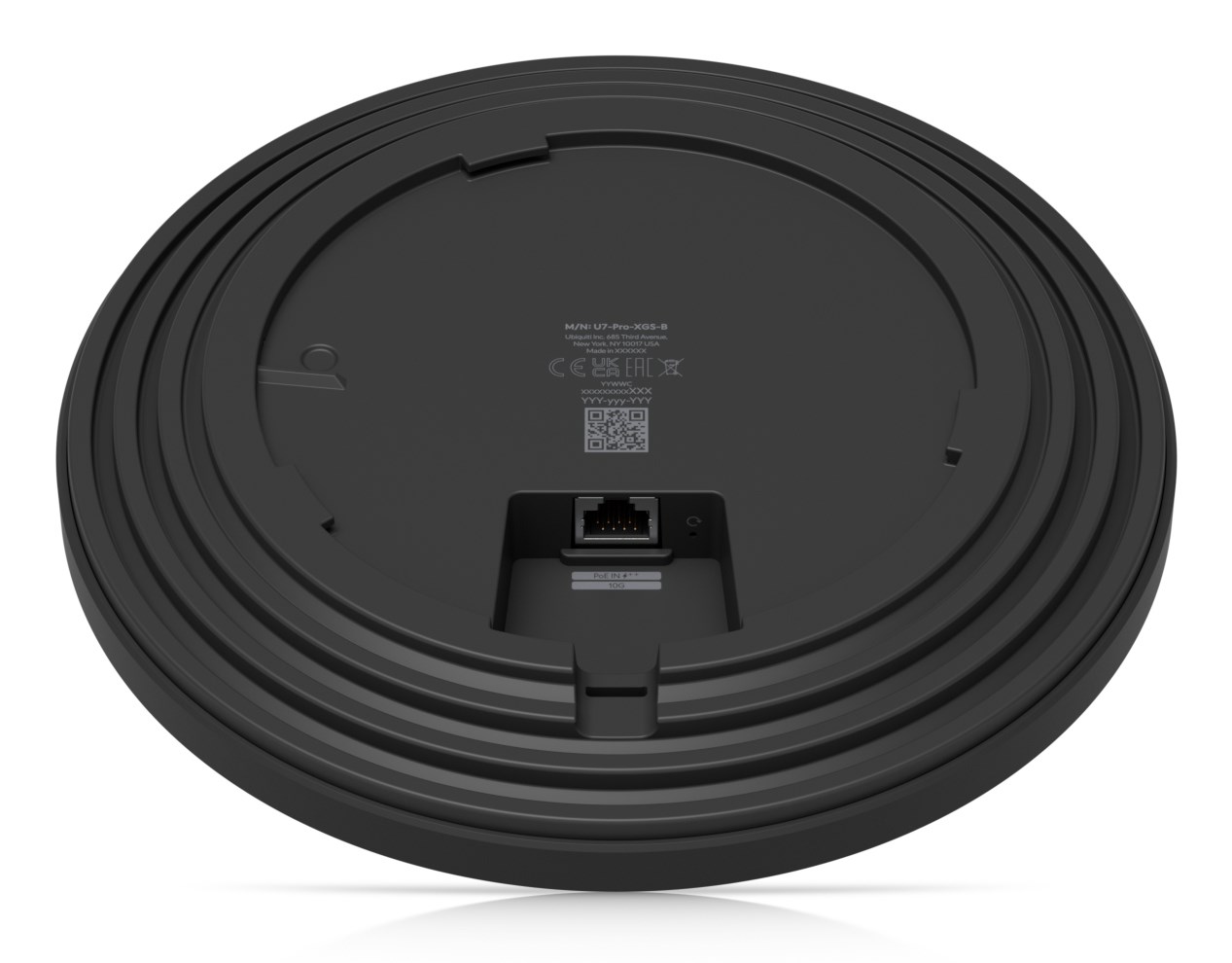

Connectivity: One Ethernet RJ45 1/2.5 GbE port for fast wired connection.Senetic

Power over PoE+: Facilitates installation without the need for additional power cables.

Security: Support for advanced security protocols such as WPA3, PPSK, and others, ensuring secure connections.

Easy installation: Designed for wall or ceiling mounting, with dimensions Ø206 x 46 mm and weight 680 g.

Key Features

WiFi 7 Technology (802.11be): Support for simultaneous operation on three frequency bands (2.4 GHz, 5 GHz, and 6 GHz), offering higher speeds and reduced latency.
Multi-user support: Ability to serve over 300 concurrent devices, ideal for high-density user environments.
Connectivity: One Ethernet RJ45 1/2.5 GbE port for fast wired connection.Senetic
Power over PoE+: Facilitates installation without the need for additional power cables.
Security: Support for advanced security protocols such as WPA3, PPSK, and others, ensuring secure connections.
Easy installation: Designed for wall or ceiling mounting, with dimensions Ø206 x 46 mm and weight 680 g.

Technical Specifications

• Frequency: Tri Band (2.4 & 5 & 6GHz)
• Wi-Fi Generation: Wi‑Fi 7
• IEEE Networking Standards: 802.11 b/g/n, 802.11a, 802.11ac, 802.11ax, 802.11be
• LAN speed: 10000 Mbps
• Wi-Fi Mesh Network: No
• Ethernet Backhaul: No
• Antenna Power (max): 6 dBi
• Transmit Power (max): 29 dBm
• PoE Support: PoE
• MIMO Technology: 2×2

General Characteristics

• Placement: Indoor
• Packaging: Single Kit

Installation Type

• Ceiling: Yes
• Wall: Yes
• Board games: No

• WiFi 7 Technology (802.11be): Support for simultaneous operation on three frequency bands (2.4 GHz, 5 GHz, and 6 GHz), offering higher speeds and reduced latency.
• Multi-user support: Ability to serve over 300 concurrent devices, ideal for high-density user environments.
• Connectivity: One Ethernet RJ45 1/2.5 GbE port for fast wired connection.Senetic
• Power over PoE+: Facilitates installation without the need for additional power cables.
• Security: Support for advanced security protocols such as WPA3, PPSK, and others, ensuring secure connections.
• Easy installation: Designed for wall or ceiling mounting, with dimensions Ø206 x 46 mm and weight 680 g.
• WiFi 7 Technology (802.11be): Support for simultaneous operation on three frequency bands (2.4 GHz, 5 GHz, and 6 GHz), offering higher speeds and reduced latency.
• Multi-user support: Ability to serve over 300 concurrent devices, ideal for high-density user environments.
• Connectivity: One Ethernet RJ45 1/2.5 GbE port for fast wired connection.Senetic
• Power over PoE+: Facilitates installation without the need for additional power cables.
• Security: Support for advanced security protocols such as WPA3, PPSK, and others, ensuring secure connections.
• Easy installation: Designed for wall or ceiling mounting, with dimensions Ø206 x 46 mm and weight 680 g.
