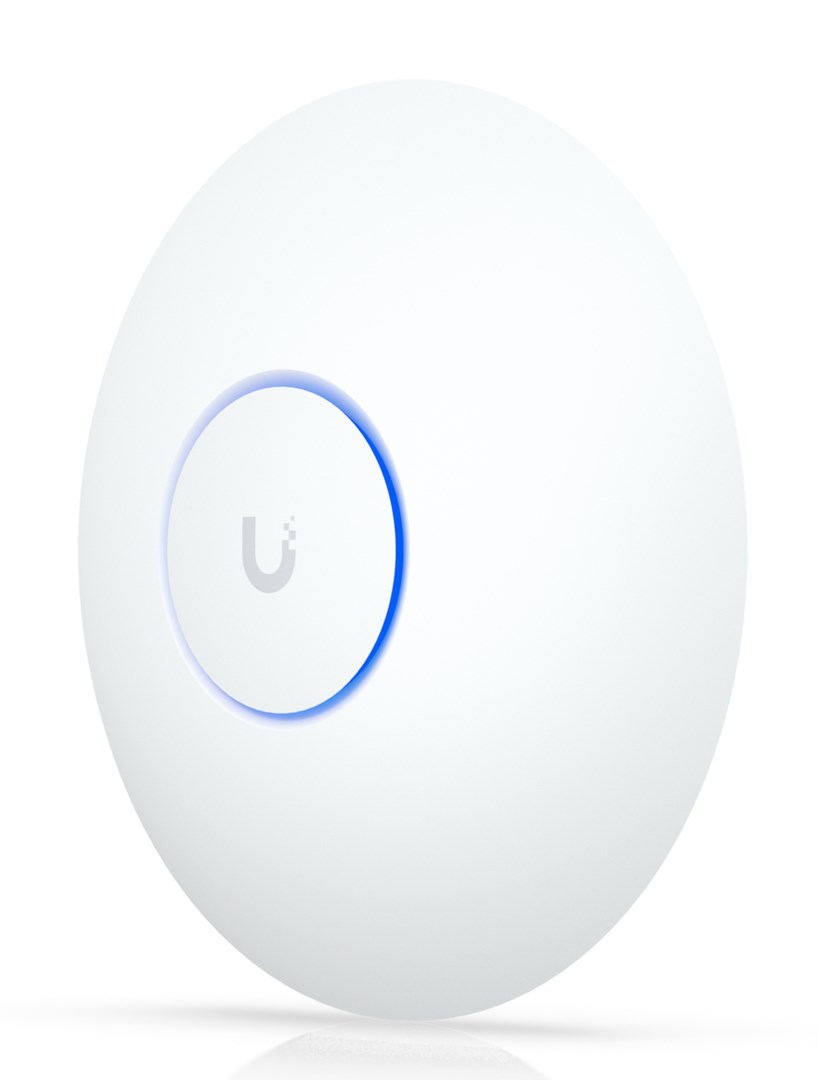

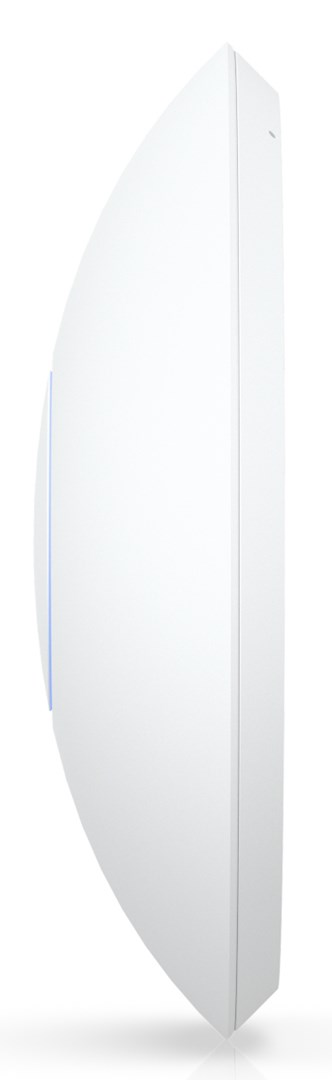

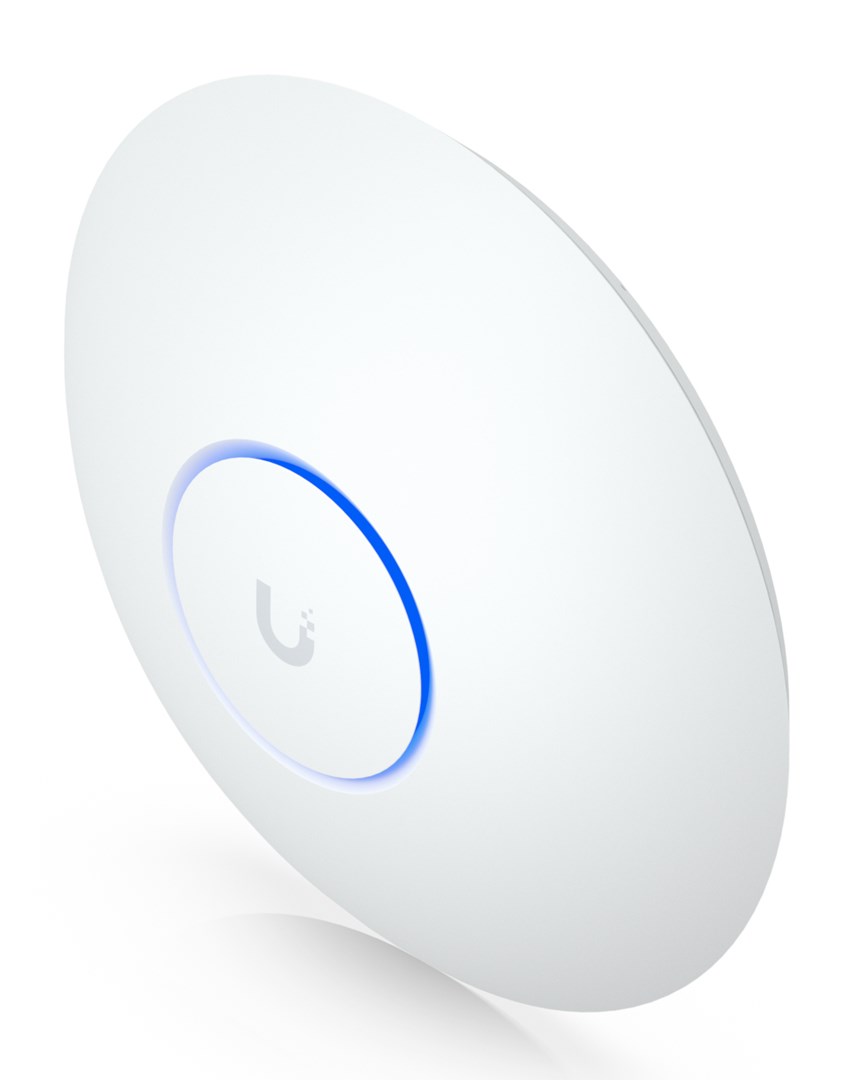

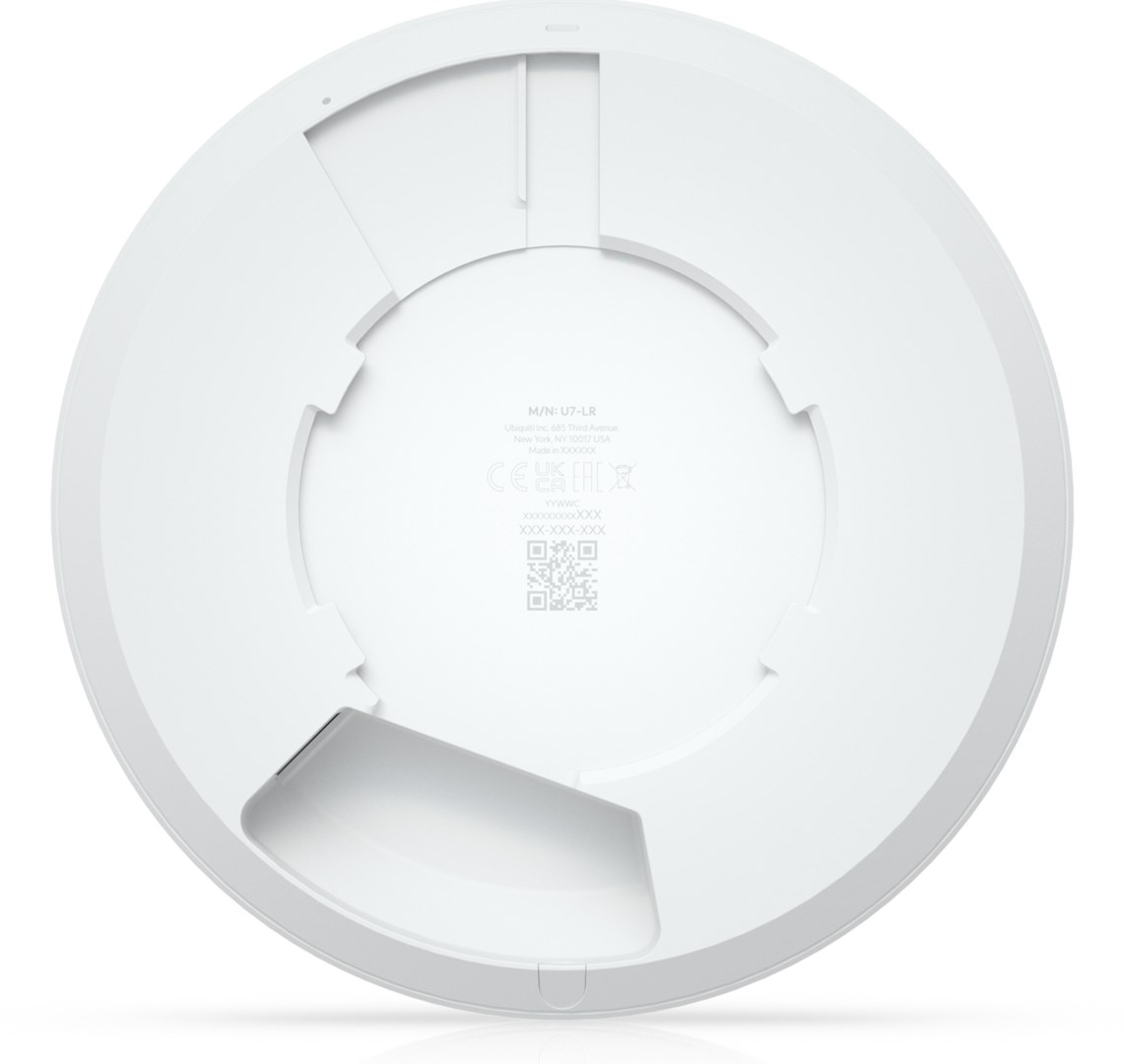

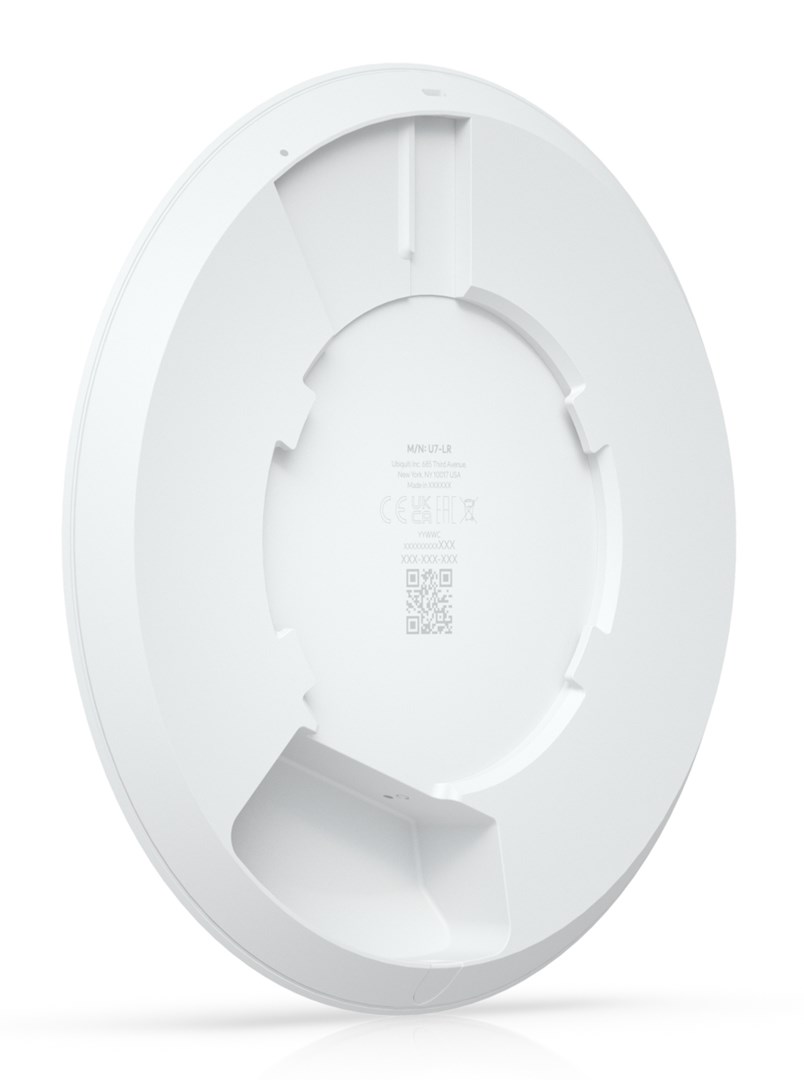

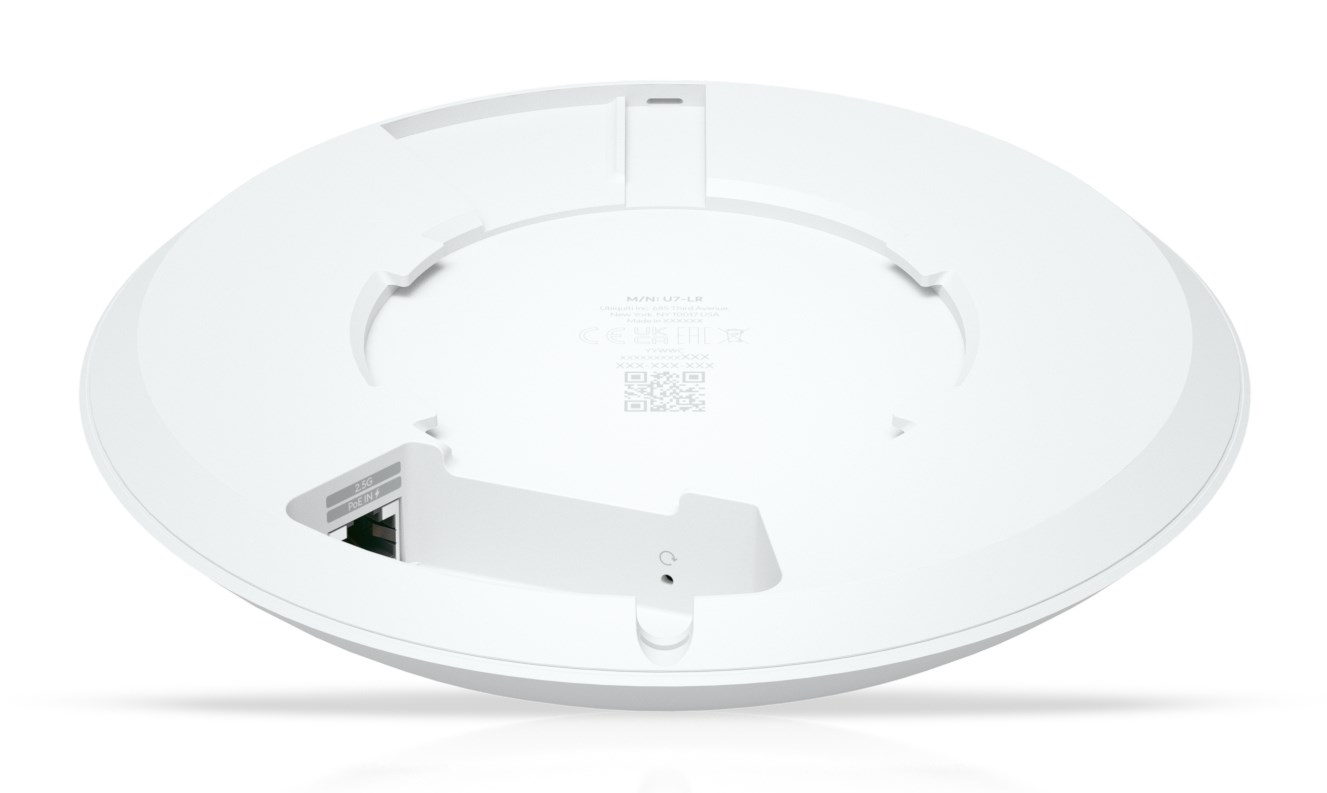

Ubiquiti U7 WiFi Mesh Network Access Point Wi‑Fi 7 Dual Band (2.4 & 5GHz) White

The Ubiquiti U7 Long-Range Access Point (White) is an advanced connectivity solution designed to provide reliable and fast wireless coverage over long distances. With its innovative technology, this access point meets the needs of businesses, organizations, or home use, offering reliable connectivity to all users.

The Ubiquiti U7 Long-Range Access Point (White) is an advanced connectivity solution designed to provide reliable and fast wireless coverage over long distances. With its innovative technology, this access point meets the needs of businesses, organizations, or home use, offering dependable connectivity to all users.

With its sleek and white design, the Ubiquiti U7 is both functional and aesthetically pleasing, making it ideal for any environment. It is easy to install and manage, making it simple to connect more devices without overloading the network.

The Ubiquiti U7 supports the latest Wi-Fi standards, providing data transfer speeds of up to 1,200 Mbps. With the ability to operate on both 2.4GHz and 5GHz frequencies, users can choose the best frequency based on their needs, ensuring stable connections even in environments with multiple interferences.

This access point features powerful MIMO (Multiple Input Multiple Output) technology, which enhances network performance and capacity, allowing multiple users to connect simultaneously without loss of speed. It is ideal for spaces with a large number of users, such as offices, schools, and public libraries.

Easy management through the UniFi Controller app allows you to monitor your network status in real time, make adjustments, and control the performance of your devices. This product is ideal for IT professionals and regular users alike, offering ease of use and efficiency.

Dimensions: Ø175.7 x 43 mm (Ø6.9 x 1.7″)
WiFi Standard: WiFi 7
Spatial Streams: 5
Coverage Area: 160 m² (1,750 ft²)
Maximum Number of Clients: 300+
Uplink: 2.5 GbE

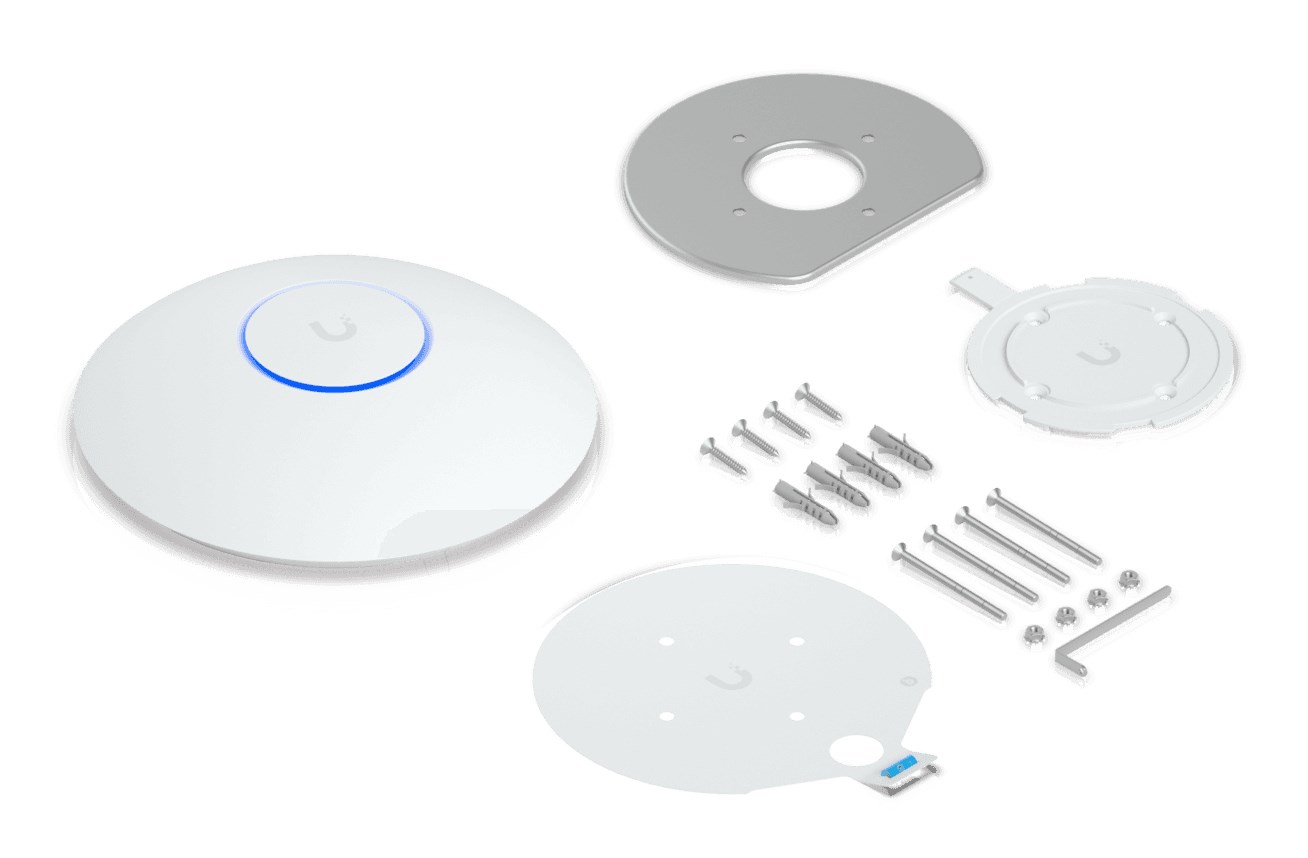

Mounting: Ceiling, Wall (Plastic mounting plate included)
Power Method: PoE
MIMO
5 GHz: 3 x 3 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Maximum Data Rate
5 GHz 4.3 Gbps (BW160)
2.4 GHz 688 Mbps (BW40)
Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)

The Ubiquiti U7 Long-Range Access Point (White) is an advanced connectivity solution designed to provide reliable and fast wireless coverage over long distances. With its innovative technology, this access point meets the needs of businesses, organizations, or home use, offering dependable connectivity to all users.
With its sleek and white design, the Ubiquiti U7 is both functional and aesthetically pleasing, making it ideal for any environment. It is easy to install and manage, making it simple to connect more devices without overloading the network.
The Ubiquiti U7 supports the latest Wi-Fi standards, providing data transfer speeds of up to 1,200 Mbps. With the ability to operate on both 2.4GHz and 5GHz frequencies, users can choose the best frequency based on their needs, ensuring stable connections even in environments with multiple interferences.
This access point features powerful MIMO (Multiple Input Multiple Output) technology, which enhances network performance and capacity, allowing multiple users to connect simultaneously without loss of speed. It is ideal for spaces with a large number of users, such as offices, schools, and public libraries.
Easy management through the UniFi Controller app allows you to monitor your network status in real time, make adjustments, and control the performance of your devices. This product is ideal for IT professionals and regular users alike, offering ease of use and efficiency.

Dimensions: Ø175.7 x 43 mm (Ø6.9 x 1.7″)
WiFi Standard: WiFi 7
Spatial Streams: 5
Coverage Area: 160 m² (1,750 ft²)
Maximum Number of Clients: 300+
Uplink: 2.5 GbE
Mounting: Ceiling, Wall (Plastic mounting plate included)
Power Method: PoE
MIMO
5 GHz: 3 x 3 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Maximum Data Rate
5 GHz
4.3 Gbps (BW160)

2.4 GHz
688 Mbps (BW40)

Supported Data Rates
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)

• Dimensions: Ø175.7 x 43 mm (Ø6.9 x 1.7")
• WiFi Standard: WiFi 7
• Spatial Streams: 5
• Coverage Area: 160 m² (1,750 ft²)
• Maximum Number of Clients: 300+
• Uplink: 2.5 GbE
• Mounting: Ceiling, Wall (Plastic mounting plate included)
• Power Method: PoE
• MIMO
  5 GHz: 3 x 3 (DL/UL MU-MIMO)
  2.4 GHz 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 3 x 3 (DL/UL MU-MIMO)
• 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
• Maximum Data Rate
  5 GHz 4.3 Gbps (BW160)
  2.4 GHz 688 Mbps (BW40)
• 5 GHz 4.3 Gbps (BW160)
• 2.4 GHz 688 Mbps (BW40)
• Supported Data Rates

  802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)
  802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)
  802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)
  802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)

• 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)
• 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
• Dimensions: Ø175.7 x 43 mm (Ø6.9 x 1.7")
• WiFi Standard: WiFi 7
• Spatial Streams: 5
• Coverage Area: 160 m² (1,750 ft²)
• Maximum Number of Clients: 300+
• Uplink: 2.5 GbE
• Mounting: Ceiling, Wall (Plastic mounting plate included)
• Power Method: PoE
• MIMO
  5 GHz: 3 x 3 (DL/UL MU-MIMO)
  2.4 GHz
  2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 3 x 3 (DL/UL MU-MIMO)
• 2.4 GHz
  2 x 2 (DL/UL MU-MIMO)
• Maximum Data Rate
  5 GHz
  4.3 Gbps (BW160)

  2.4 GHz
  688 Mbps (BW40)

• 5 GHz
  4.3 Gbps (BW160)
• 2.4 GHz
  688 Mbps (BW40)
• Supported Data Rates
  802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)
  802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)
  802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)
  802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
• 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)
• 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
