DeepCool CC560 MESH V2 enclosure

The DeepCool CC560 MESH V2 mid-tower case offers great value with spacious component compatibility, a full-sized glass window, a fine mesh front panel, and a total of four pre-installed ARGB fans that kickstart every build properly. The V2 model builds on the success of the previous generation and raises the bar.

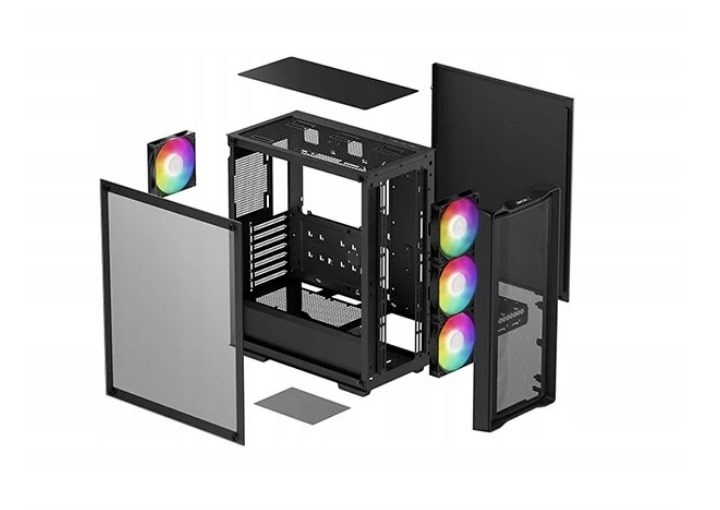

Full Airflow Performance

Well-ventilated throughout the frame, the CC560 V2 features an airflow front panel, support for fans on the PSU cover, and a large mesh panel on the top to ensure the circulation of fresh air.

Prepared and Ready

Four pre-installed LED fans provide great airflow performance, ensuring that every system build will receive top cooling capability.

Wide Cooling Support

There is ample space to support high-performance AIO liquid coolers, with room for a 360 mm radiator at the front or a 280 mm at the top. Cooling fan support for up to 8x120mm or 5x140mm fans. The power supply cover can now support two 120mm fans, providing an extra breath of fresh air to your power-hungry GPU!

Compatibility

With the capability to support ATX motherboards, CPU coolers up to 165 mm in height, GPUs up to 370 mm, and PSUs up to 170 mm, the CC560 MESH V2 can be configured with a wide range of high-spec components.

Storage Solutions

Support for 2x SSD 2.5″ and 2x HDD 3.5″. One of the HDD slots can be used for a third 2.5″ drive, if necessary.

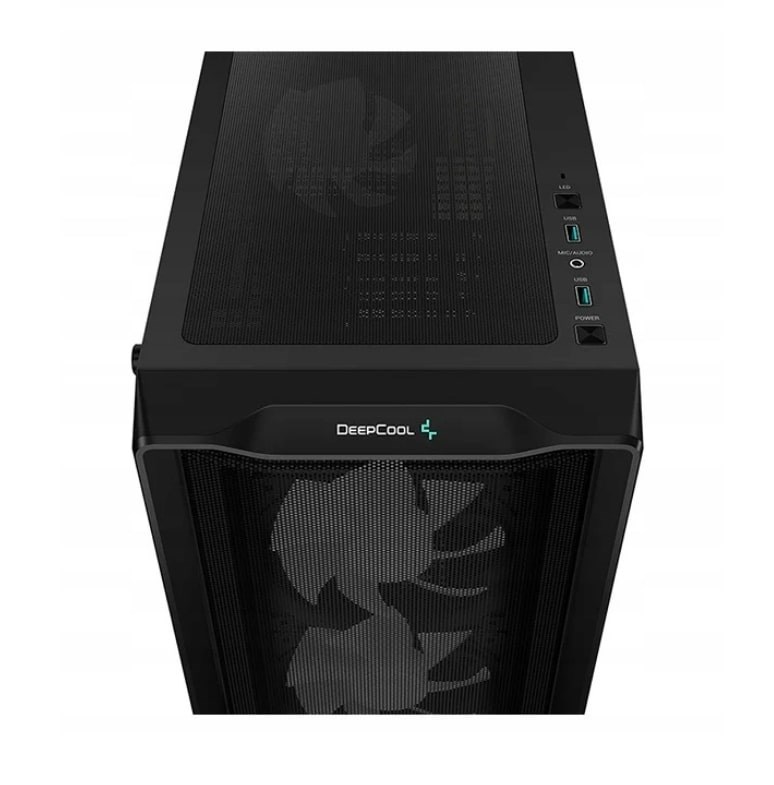

TOP I/O PANEL

It features two easily accessible USB 3.0 ports and a combined audio jack.

Full Airflow Performance

Well-ventilated throughout the frame, the CC560 V2 features an airflow front panel, support for fans on the PSU cover, and a large mesh panel on the top to ensure the circulation of fresh air.

Prepared and Ready

Four pre-installed LED fans provide great airflow performance, ensuring that every system build will receive top cooling capability.

Wide Cooling Support

There is ample space to support high-performance AIO liquid coolers, with room for a 360 mm radiator at the front or a 280 mm at the top. Cooling fan support for up to 8x120mm or 5x140mm fans. The power supply cover can now support two 120mm fans, providing an extra breath of fresh air to your power-hungry GPU!

Compatibility

With the capability to support ATX motherboards, CPU coolers up to 165 mm in height, GPUs up to 370 mm, and PSUs up to 170 mm, the CC560 MESH V2 can be configured with a wide range of high-spec components.

Storage Solutions

Support for 2x SSD 2.5″ and 2x HDD 3.5″. One of the HDD slots can be used for a third 2.5″ drive, if necessary.

TOP I/O PANEL

It features two easily accessible USB 3.0 ports and a combined audio jack.

Main Specifications

• Colour: Black
• Size: Midi Tower
• Compatible Motherboard Type: ATX, Micro ATX, Mini ITX

Dimensions

• Height: 432 mm
• Width: 215 mm
• Length: 483 mm

Internal Spaces

• Maximum Graphics Card Length: 370 mm
• Maximum Processor Heatsink Height: 165 mm

Drive Bays

• Internal Hub 3.5": 2
• Internal Hub 2.5": 3

Fan Positions

• Front: 3
• Rear: 1
• Top Positions: 2

Water Cooling

• Radiator Position: Top, Front, Back

Specifications

• Connectivity: Audio, USB 2.0, USB 3.0
• Extras: Side Window
• Gaming: Yes
• Airflow: Yes
• Home & Office: No
