MAAN Vertical P 2 60 Wall-mounted canopy 310 m3/h Black

The Maan company’s vent hood is wall-mounted. It is designed to cover the air exhaust pipe and resemble a chimney.

The maximum suction power is 310 m³/h, which can adequately cover spaces up to 10 square meters (with a height of 2.85 meters).
The air drawn by the vent hood is either expelled through a pipe or recirculated within the hood. For operation with air extraction, a pipe needs to be installed to expel the air outside the kitchen.

It accepts metal filters, which can be removed and washed in the dishwasher or by hand, and do not require frequent replacement.

Additionally, it also accepts carbon filters, which are necessary for air recirculation operation. Carbon filters are not washable and it is recommended to replace them every 4-6 months.

The Maan company’s vent hood is wall-mounted. It is designed to cover the air exhaust pipe and resemble a chimney.The maximum suction power is 310 m³/h, which can adequately cover spaces up to 10 square meters (with a height of 2.85 meters).The air drawn by the vent hood is either expelled through a pipe or recirculated within the hood. For operation with air extraction, a pipe needs to be installed to expel the air outside the kitchen.It accepts metal filters, which can be removed and washed in the dishwasher or by hand, and do not require frequent replacement.Additionally, it also accepts carbon filters, which are necessary for air recirculation operation. Carbon filters are not washable and it is recommended to replace them every 4-6 months.

Product Details

• Type: Chimney
• Retro: No
• Grease Filter Material: Charcoal (optional)
• Extraction Mode: Extraction or Recirculation
• Dual Motor: No
• Type of Control: Switches
• Timer Function: No
• Filter Cleaning Indicator: No
• Washable Filter: Yes
• Colour: Black

Technical Features

• Extraction Power (Max): 310 m³/h

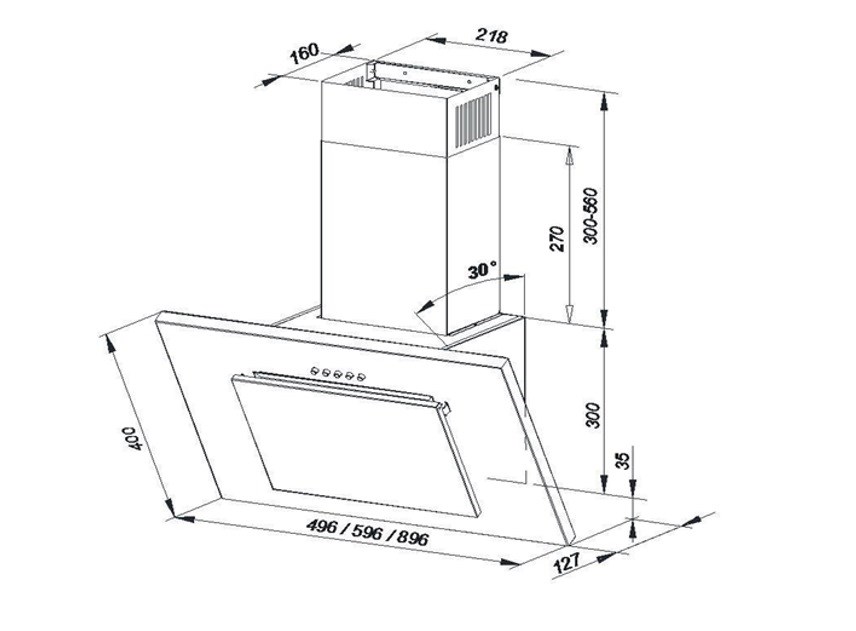

Dimensions

• Width: 60 cm
• Length: 59.6 cm

Energy Label

• Energy Class: B
• Average Energy Consumption per Year: 34 kWh/y
• Extraction Flow Efficiency: D
• Lighting Efficiency: A
• Fat Retention Efficiency: D
• Noise Level: 62 dB
