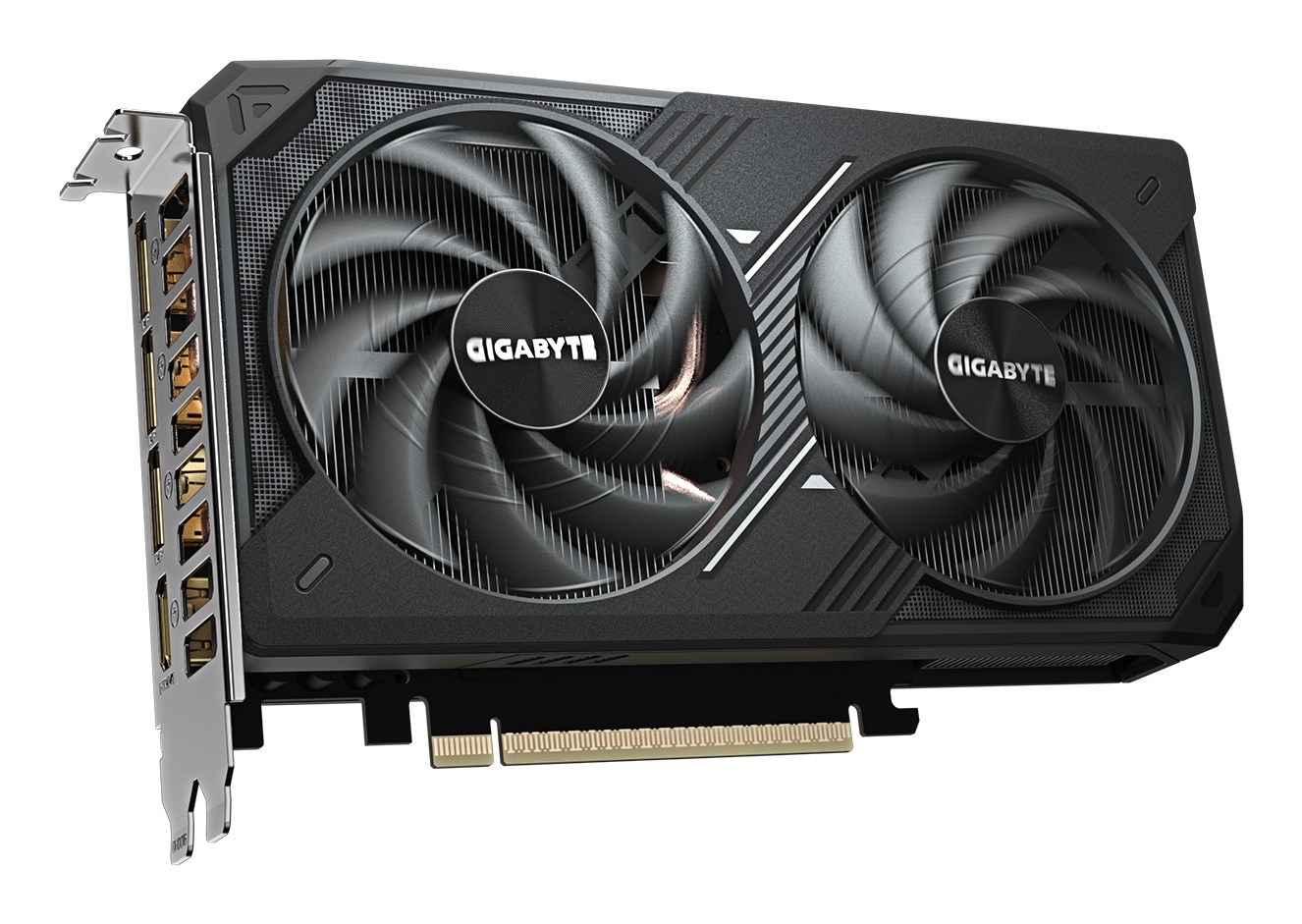

Gigabyte GeForce RTX 5060 Ti 8GB GDDR7 Windforce Max OC Graphics Card

The GeForce RTX 5060 Ti Windforce Max OC 16GB graphics card is a powerful mid-range GPU with 8GB of GDDR7 memory. It features overclocking and an advanced Windforce cooling system for better performance and low temperatures. It supports technologies such as ray tracing and DLSS 4 for enhanced graphics and gaming at 1080p and 1440p. It is ideal for gamers and content creators who want a balance of performance and reliability.

Comparison with the Previous Generation

The Nvidia GeForce RTX 5060 Ti is the evolution of the RTX 4060 Ti, offering improvements in various areas.

Main Improvements of the RTX 5060 Ti:

Architecture: The RTX 5060 Ti is based on the Blackwell architecture, while the RTX 4060 Ti is based on Ada Lovelace.

Memory: The RTX 5060 Ti features faster GDDR7 memory with a bandwidth of 448 GB/s, compared to the GDDR6X of the RTX 4060 Ti with 272 GB/s.

DLSS 4: The introduction of DLSS 4 technology with Multi Frame Generation improves performance in supported games.

NVIDIA Blackwell Architecture

The ultimate platform for Gamers and creators

Fifth-generation Tensor Cores

Maximum AI performance with FP4 and DLSS 4

New streaming multiprocessors

Optimized for neural shaders

Fourth-generation Ray Tracing Cores

Built for Mega geometry

The ultimate in Ray Tracing and artificial intelligence

RTX is the most advanced platform for full Ray Tracing and neural rendering technologies that are revolutionizing the ways we play and create. More than 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with groundbreaking AI features, such as DLSS Multi Frame Generation.

RTX is the most advanced platform for full Ray Tracing and neural rendering technologies that are revolutionizing the ways we play and create. More than 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with groundbreaking AI features, such as DLSS Multi Frame Generation.

NVIDIA DLSS 4

Το DLSS είναι μια επαναστατική σουίτα τεχνολογιών νευρωνικής απεικόνισης που χρησιμοποιεί AI για να αυξήσει τα FPS, να μειώσει την καθυστέρηση και να βελτιώσει την ποιότητα της εικόνας. Η πιο πρόσφατη επανάσταση, το DLSS 4, φέρνει νέα γενιά πολλαπλών καρέ και βελτιωμένη ανακατασκευή ακτίνων και υπερανάλυση, που υποστηρίζεται από GPUs GeForce RTX™ 50 Series και πυρήνες Tensor πέμπτης γενιάς. Το DLSS σε GeForce RTX είναι ο καλύτερος τρόπος για να παίζετε, υποστηριζόμενο από έναν υπερυπολογιστή AI της NVIDIA στο cloud που βελτιώνει συνεχώς τις δυνατότητες του υπολογιστή σας για παιχνίδια.

Game-Changing Realism

The NVIDIA Blackwell architecture unlocks game-changing realism with full ray tracing. Enjoy cinematic-quality visuals with unprecedented speed supported by the GeForce RTX 50 series with fourth-generation RT cores and groundbreaking neural rendering technologies accelerated by fifth-generation Tensor cores.

NVIDIA Reflex 2

Οι τεχνολογίες Reflex βελτιστοποιούν τον κατανεμητή γραφικών για απόλυτη απόκριση, παρέχοντας ταχύτερη απόκτηση στόχου, ταχύτερους χρόνους αντίδρασης και βελτιωμένη ακρίβεια σκόπευσης σε ανταγωνιστικά παιχνίδια. Το Reflex 2 εισάγει το Frame Warp (σύντομα!), το οποίο μειώνει περαιτέρω την καθυστέρηση με βάση την τελευταία είσοδο του ποντικιού στο παιχνίδι.

Υπολογιστές RTX AI

Αναβαθμίστε την προηγμένη AI με τις GPU NVIDIA GeForce RTX™ και επιταχύνετε το gaming, τη δημιουργία, την παραγωγικότητα και την ανάπτυξή σας. Χάρη στους ενσωματωμένους επεξεργαστές AI, αποκτάτε κορυφαία παγκοσμίως τεχνολογία AI που τροφοδοτεί το Windows PC σας.

Creators

NVIDIA Studio is your creative advantage. The GeForce RTX 50 series GPUs unlock stunning performance in video editing, 3D rendering, and graphic design. Enjoy RTX accelerations in top creative applications, world-class NVIDIA Studio drivers that are designed and continuously updated to provide maximum stability, as well as a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

Virtual Reality

Virtual reality offers some of the most immersive experiences on a gaming PC. But getting the right VR is challenging. With actual screen resolutions at 4K and increasing, minimum refresh rates of 90 Hz, and high latency tolerances, VR is one of the most demanding PC applications in the world and requires the most powerful GPUs in the world.

NVIDIA’s GeForce RTX GPUs give you the performance you need to power top titles on the latest VR units. Additionally, they feature technology to crank up the settings for truly impressive, immersive gameplay.

WINDFORCE Cooling System

The WINDFORCE cooling system offers excellent thermal performance through a combination of advanced technologies. It features professional-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

Hawk Fans

The Hawk fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, achieving up to a 53.6% increase in air pressure and a 12.5% increase in airflow without affecting acoustics.

Comparison with the Previous Generation

The Nvidia GeForce RTX 5060 Ti is the evolution of the RTX 4060 Ti, offering improvements in various areas.
Main Improvements of the RTX 5060 Ti:
Architecture: The RTX 5060 Ti is based on the Blackwell architecture, while the RTX 4060 Ti is based on Ada Lovelace.
Memory: The RTX 5060 Ti features faster GDDR7 memory with a bandwidth of 448 GB/s, compared to the GDDR6X of the RTX 4060 Ti with 272 GB/s.
DLSS 4: The introduction of DLSS 4 technology with Multi Frame Generation improves performance in supported games.

NVIDIA Blackwell Architecture

The ultimate platform for Gamers and creators
Fifth-generation Tensor Cores
Maximum AI performance with FP4 and DLSS 4
New streaming multiprocessors
Optimized for neural shaders
Fourth-generation Ray Tracing Cores
Built for Mega geometry

The ultimate in Ray Tracing and artificial intelligence

RTX is the most advanced platform for full Ray Tracing and neural rendering technologies that are revolutionizing the ways we play and create. More than 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with groundbreaking AI features, such as DLSS Multi Frame Generation.
RTX is the most advanced platform for full Ray Tracing and neural rendering technologies that are revolutionizing the ways we play and create. More than 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with groundbreaking AI features, such as DLSS Multi Frame Generation.

NVIDIA DLSS 4

Το DLSS είναι μια επαναστατική σουίτα τεχνολογιών νευρωνικής απεικόνισης που χρησιμοποιεί AI για να αυξήσει τα FPS, να μειώσει την καθυστέρηση και να βελτιώσει την ποιότητα της εικόνας. Η πιο πρόσφατη επανάσταση, το DLSS 4, φέρνει νέα γενιά πολλαπλών καρέ και βελτιωμένη ανακατασκευή ακτίνων και υπερανάλυση, που υποστηρίζεται από GPUs GeForce RTX™ 50 Series και πυρήνες Tensor πέμπτης γενιάς. Το DLSS σε GeForce RTX είναι ο καλύτερος τρόπος για να παίζετε, υποστηριζόμενο από έναν υπερυπολογιστή AI της NVIDIA στο cloud που βελτιώνει συνεχώς τις δυνατότητες του υπολογιστή σας για παιχνίδια.

Game-Changing Realism

The NVIDIA Blackwell architecture unlocks game-changing realism with full ray tracing. Enjoy cinematic-quality visuals with unprecedented speed supported by the GeForce RTX 50 series with fourth-generation RT cores and groundbreaking neural rendering technologies accelerated by fifth-generation Tensor cores.

NVIDIA Reflex 2

Οι τεχνολογίες Reflex βελτιστοποιούν τον κατανεμητή γραφικών για απόλυτη απόκριση, παρέχοντας ταχύτερη απόκτηση στόχου, ταχύτερους χρόνους αντίδρασης και βελτιωμένη ακρίβεια σκόπευσης σε ανταγωνιστικά παιχνίδια. Το Reflex 2 εισάγει το Frame Warp (σύντομα!), το οποίο μειώνει περαιτέρω την καθυστέρηση με βάση την τελευταία είσοδο του ποντικιού στο παιχνίδι.

Υπολογιστές RTX AI

Αναβαθμίστε την προηγμένη AI με τις GPU NVIDIA GeForce RTX™ και επιταχύνετε το gaming, τη δημιουργία, την παραγωγικότητα και την ανάπτυξή σας. Χάρη στους ενσωματωμένους επεξεργαστές AI, αποκτάτε κορυφαία παγκοσμίως τεχνολογία AI που τροφοδοτεί το Windows PC σας.

Creators

NVIDIA Studio is your creative advantage. The GeForce RTX 50 series GPUs unlock stunning performance in video editing, 3D rendering, and graphic design. Enjoy RTX accelerations in top creative applications, world-class NVIDIA Studio drivers that are designed and continuously updated to provide maximum stability, as well as a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

Virtual Reality

Virtual reality offers some of the most immersive experiences on a gaming PC. But getting the right VR is challenging. With actual screen resolutions at 4K and increasing, minimum refresh rates of 90 Hz, and high latency tolerances, VR is one of the most demanding PC applications in the world and requires the most powerful GPUs in the world.
NVIDIA’s GeForce RTX GPUs give you the performance you need to power top titles on the latest VR units. Additionally, they feature technology to crank up the settings for truly impressive, immersive gameplay.

WINDFORCE Cooling System

The WINDFORCE cooling system offers excellent thermal performance through a combination of advanced technologies. It features professional-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

Hawk Fans

The Hawk fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, achieving up to a 53.6% increase in air pressure and a 12.5% increase in airflow without affecting acoustics.

Specifications

• Product Number: GV-N506TWF2MAXOC-8GD

Main Specifications

• Processor Manufacturer: Nvidia
• Chipset Model: GeForce RTX 5060 Ti
• Interface: PCI Express x8 5.0
• Processor Speed (Base Clock): 2587 MHz
• Maximum Resolution: 7680×4320 pixels
• Parallel Processing Technology: Not Supported
• Type: High Performance
• Cuda Cores: 4608
• Device Group: Gaming
• Colour: Black

Special Features

• RGB Lighting: No
• OverClock (OC): Yes
• Air-cooled: Yes
• Low Profile: No
• Passive Cooling: No
• Water-cooled: No
• External Graphics Card (eGPU): No
• LHR: No

Memory

• Memory Capacity: 8 GB
• Memory type: GDDR7
• Memory Speed: 2587 MHz
• Memory Speed: 28 Gbps
• Memory bus: 128 bit

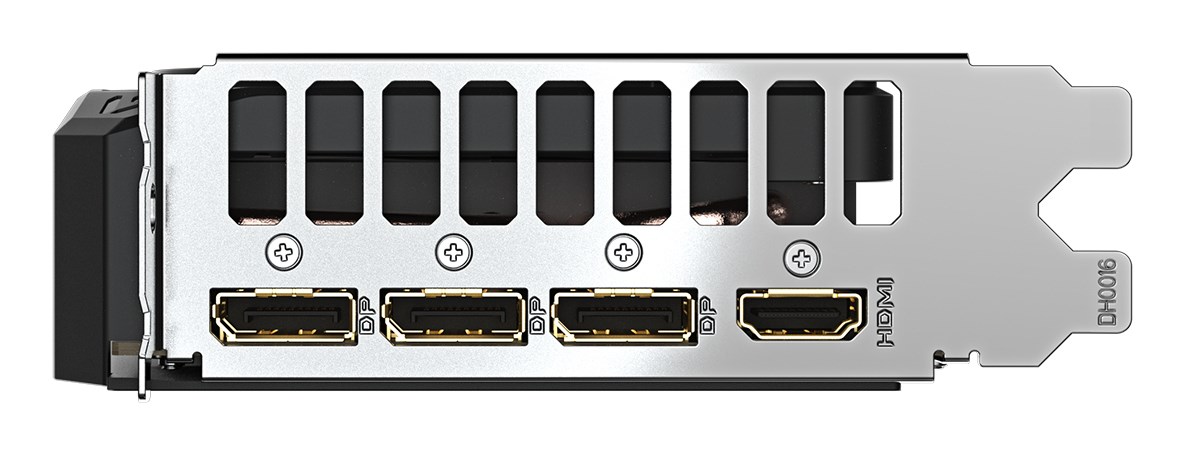

Connectivity

• HDMI: 1
• DisplayPort: 3
• Dual Link DVI: No

System Requirements

• Minimum Power Supply: 650 W
• Power Connectors: 8-pin

Dimensions

• Length: 208 mm
• Height: 120 mm
• Thickness: 40 mm

Top Specs

• Memory: 8GB, GDDR7
• Connectivity: HDMI, DisplayPort

• Maximum AI performance with FP4 and DLSS 4
• Optimized for neural shaders
• Built for Mega geometry
• Maximum AI performance with FP4 and DLSS 4
• Optimized for neural shaders
• Built for Mega geometry
