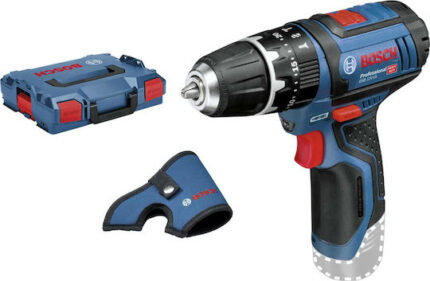

Bosch GSB 12V-15 Cordless Combi Drill

At a glance

With 189 mm, the most compact design in its category for ideal handling, especially for drilling and screwing tasks overhead and in tight spaces.
Recently developed 2-speed planetary gearbox for powerful screwing and drilling tasks in wood and metal, as well as impact drilling tasks in masonry.
Bosch Electronic Cell Protection (ECP): Protects the battery from overloading, overheating, and deep discharge.
Motor brake for precise work during continuous screwing.
High-quality Auto-Lock 10 mm chuck.
Integrated LED light for illuminating the work area even in dark spots.

Drill Diameter

Drilling diameter in wood, max. 19 mm
Drilling diameter in steel, max. 10 mm
Drilling diameter in masonry, max. 10 mm
Screw diameter, max. 7 mm

Specifications

Torque, max. (hard screwdriving applications) 30 Nm
Torque, max. (soft screwdriving applications) 13 Nm
No-load speed (1st gear/2nd gear) 0 – 380 / 0 – 1,300 min-1
Max. impact rate 19,500 min-1
Chuck clamping range, min./max. 1 / 10 mm
Drill spindle thread 1/2″
Battery voltage 10.8 V
Weight with battery 1 kg
Torque settings 20+1
Length 189.0 mm
Height 175.0 mm

At a glance

With 189 mm, the most compact design in its category for ideal handling, especially for drilling and screwing tasks overhead and in tight spaces.
Recently developed 2-speed planetary gearbox for powerful screwing and drilling tasks in wood and metal, as well as impact drilling tasks in masonry.
Bosch Electronic Cell Protection (ECP): Protects the battery from overloading, overheating, and deep discharge.
Motor brake for precise work during continuous screwing.
High-quality Auto-Lock 10 mm chuck.
Integrated LED light for illuminating the work area even in dark spots.

Drill Diameter

Drilling diameter in wood, max. 19 mm
Drilling diameter in steel, max. 10 mm
Drilling diameter in masonry, max. 10 mm
Screw diameter, max. 7 mm

Specifications

Torque, max. (hard screwdriving applications) 30 Nm
Torque, max. (soft screwdriving applications) 13 Nm
No-load speed (1st gear/2nd gear) 0 – 380 / 0 – 1,300 min-1
Max. impact rate 19,500 min-1
Chuck clamping range, min./max. 1 / 10 mm
Drill spindle thread 1/2″
Battery voltage 10.8 V
Weight with battery 1 kg
Torque settings 20+1
Length 189.0 mm
Height 175.0 mm

Product Details

• Type: Drill Driver
• Power Source: Battery
• Brushless: No
• Number of Batteries: 0
• Battery Voltage: 12 V
• Secondary Battery Charge Ah: 2 Ah
• Compatible Battery Type: Bosch GBA 12V, Bosch GBA 10.8V
• Steel Ø: 10 mm
• Wood Ø: 19 mm
• Cement Ø: 10 mm
• Maximum Motor Speed: 1300 rpm
• Speed Adjustment: Yes
• Maximum Torque: 30 Nm
• Maximum Number of Hits: –
• Torque Adjustment: Yes
• Percussive: Yes
• Angle: No
• Interchangeable Head: No
• Reception: Quick Change
• Maximum Chuck Diameter: 10 mm
• Net Weight: 825 gr
• Weight (with Battery): 1000 gr
• Carrying Case: Hard Case
• Handle Included: No
• Integrated Light: Yes

Product Details

• Type: Drill Driver
• Power Source: Battery
• Brushless: No
• Number of Batteries: 0
• Battery Voltage: 12 V
• Secondary Battery Charge Ah: 2 Ah
• Compatible Battery Type: Bosch GBA 12V, Bosch GBA 10.8V
• Steel Ø: 10 mm
• Wood Ø: 19 mm
• Cement Ø: 10 mm
• Maximum Motor Speed: 1300 rpm
• Speed Adjustment: Yes
• Maximum Torque: 30 Nm
• Maximum Number of Hits: –
• Torque Adjustment: Yes
• Percussive: Yes
• Angle: No
• Interchangeable Head: No
• Reception: Quick Change
• Maximum Chuck Diameter: 10 mm
• Net Weight: 825 gr
• Weight (with Battery): 1000 gr
• Carrying Case: Hard Case
• Handle Included: No
• Integrated Light: Yes

• With 189 mm, the most compact design in its category for ideal handling, especially for drilling and screwing tasks overhead and in tight spaces.
• Recently developed 2-speed planetary gearbox for powerful screwing and drilling tasks in wood and metal, as well as impact drilling tasks in masonry.
• Bosch Electronic Cell Protection (ECP): Protects the battery from overloading, overheating, and deep discharge.
• Motor brake for precise work during continuous screwing.
• High-quality Auto-Lock 10 mm chuck.
• Integrated LED light for illuminating the work area even in dark spots.
• Drilling diameter in wood, max. 19 mm
• Drilling diameter in steel, max. 10 mm
• Drilling diameter in masonry, max. 10 mm
• Screw diameter, max. 7 mm
• Torque, max. (hard screwdriving applications) 30 Nm
• Torque, max. (soft screwdriving applications) 13 Nm
• No-load speed (1st gear/2nd gear) 0 – 380 / 0 – 1,300 min-1
• Max. impact rate 19,500 min-1
• Chuck clamping range, min./max. 1 / 10 mm
• Drill spindle thread 1/2"
• Battery voltage 10.8 V
• Weight with battery 1 kg
• Torque settings 20+1
• Length 189.0 mm
• Height 175.0 mm
• With 189 mm, the most compact design in its category for ideal handling, especially for drilling and screwing tasks overhead and in tight spaces.
• Recently developed 2-speed planetary gearbox for powerful screwing and drilling tasks in wood and metal, as well as impact drilling tasks in masonry.
• Bosch Electronic Cell Protection (ECP): Protects the battery from overloading, overheating, and deep discharge.
• Motor brake for precise work during continuous screwing.
• High-quality Auto-Lock 10 mm chuck.
• Integrated LED light for illuminating the work area even in dark spots.
• Drilling diameter in wood, max. 19 mm
• Drilling diameter in steel, max. 10 mm
• Drilling diameter in masonry, max. 10 mm
• Screw diameter, max. 7 mm
• Torque, max. (hard screwdriving applications) 30 Nm
• Torque, max. (soft screwdriving applications) 13 Nm
• No-load speed (1st gear/2nd gear) 0 – 380 / 0 – 1,300 min-1
• Max. impact rate 19,500 min-1
• Chuck clamping range, min./max. 1 / 10 mm
• Drill spindle thread 1/2"
• Battery voltage 10.8 V
• Weight with battery 1 kg
• Torque settings 20+1
• Length 189.0 mm
• Height 175.0 mm
