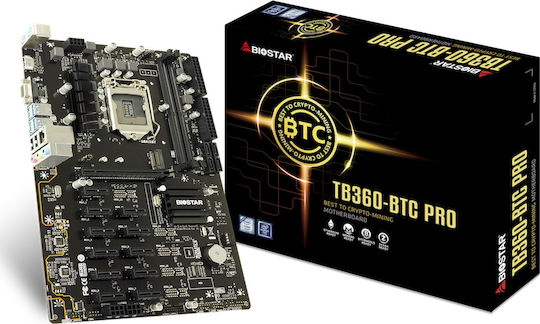

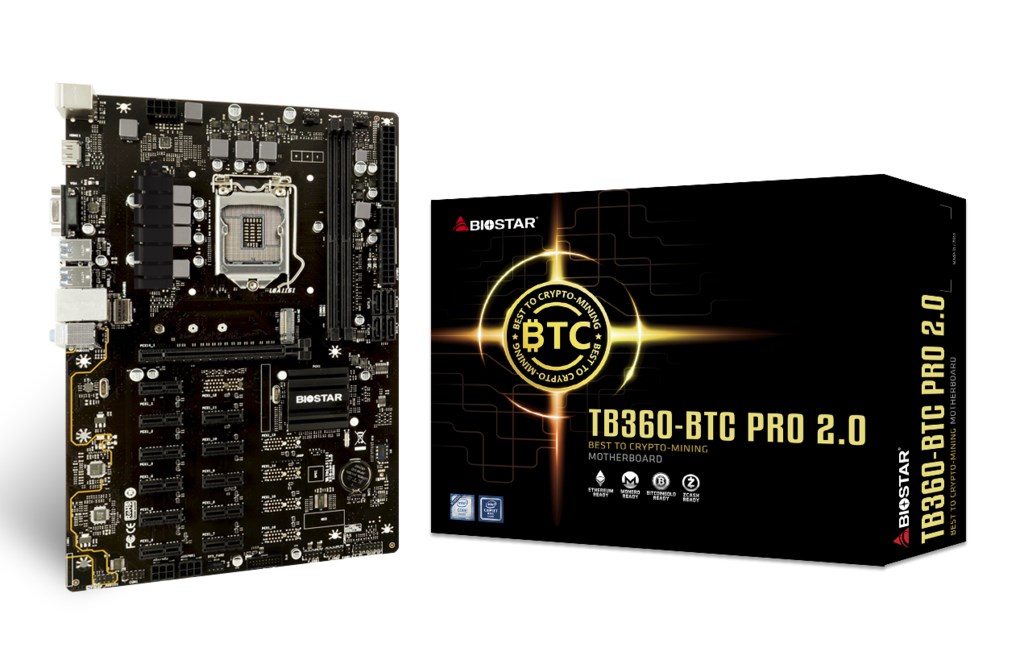

Biostar TB360-BTC PRO 2.0 motherboard Intel® B360 LGA 1151 (Socket H4) ATX

The Biostar TB360 BTC Pro Motherboard ATX is a specialized motherboard designed for cryptocurrency mining, equipped with the Intel 1151 rev 2 socket, supporting 8th and 9th generation Intel processors. With the Intel B360 chipset, it offers stability and efficiency, featuring up to 12 PCIe slots, ideal for connecting multiple GPUs, making it an ideal choice for large-scale mining rigs. It incorporates special mining features such as stable power supply, reinforced materials for durability in continuous operation, and easy diagnostic checking through LED indicators. The motherboard also includes 2x DIMM slots for DDR4 memory, SATA ports for storage, and a BIOS oriented towards stability and efficiency. It is aimed at miners seeking an economical and reliable solution for building mining systems with maximum expansion capability.

1. Intel LGA 1151 CPU

2. 2 x DIMM DDR4 2666 Slots

3. 1 x M.2 Key M Slot

4. 12 x PCI-E 3.0 Slot

5. 1 x HDMI Connector

6. 4 x USB3.1 Gen1 Connectors

7. Support Super LAN Surge Protection

8. Support Gigabit LAN Port

Intel B360 chipset

Boost your small business with the Intel® B360 chipset and the 8th generation Intel® Core™ processor. The Intel B360 chipset provides you with the power and performance you need for small business, entertainment, and your digital life.

HD Audio

Provides high-quality sound with minimal audio fidelity loss.

HDMI 4K2K

The new 4K2K resolution allows for high-definition image display with four times the resolution of Full HD. The 4K2K screen faithfully expresses bright, ultra-detailed content that fills the entire screen with vivid images. Connectivity with computers via a single HDMI cable for displaying 4K2K data.

USB 3.1 Gen 1 Type-A

Experience the fastest data transfer at 5 Gbps with USB 3.1 Gen 1 – the latest connectivity standard. Designed to easily connect with next-generation components and peripherals, USB 3.1 Gen 1 transfers data 10X faster and is compatible with previous USB 2.0 components.

Super protection against surges

BIOSTAR’s exclusive Anti-Surge design provides the best protection for the board and extends the product’s lifespan. The presence of the latest “Transient Voltage Suppressor” model on the board can effectively protect the board’s circuit, reducing shocks caused by ESD as well as other damages resulting from transient overvoltage phenomena to enhance the system’s durability.

1. Intel LGA 1151 CPU2. 2 x DIMM DDR4 2666 Slots3. 1 x M.2 Key M Slot4. 12 x PCI-E 3.0 Slot5. 1 x HDMI Connector6. 4 x USB3.1 Gen1 Connectors7. Support Super LAN Surge Protection8. Support Gigabit LAN Port

Intel B360 chipset

Boost your small business with the Intel® B360 chipset and the 8th generation Intel® Core™ processor. The Intel B360 chipset provides you with the power and performance you need for small business, entertainment, and your digital life.

HD Audio

Provides high-quality sound with minimal audio fidelity loss.

HDMI 4K2K

The new 4K2K resolution allows for high-definition image display with four times the resolution of Full HD. The 4K2K screen faithfully expresses bright, ultra-detailed content that fills the entire screen with vivid images. Connectivity with computers via a single HDMI cable for displaying 4K2K data.

USB 3.1 Gen 1 Type-A

Experience the fastest data transfer at 5 Gbps with USB 3.1 Gen 1 – the latest connectivity standard. Designed to easily connect with next-generation components and peripherals, USB 3.1 Gen 1 transfers data 10X faster and is compatible with previous USB 2.0 components.

Super protection against surges

BIOSTAR’s exclusive Anti-Surge design provides the best protection for the board and extends the product’s lifespan. The presence of the latest “Transient Voltage Suppressor” model on the board can effectively protect the board’s circuit, reducing shocks caused by ESD as well as other damages resulting from transient overvoltage phenomena to enhance the system’s durability.

Product Details

• Size: ATX
• Type: Mining

Processor

• Supported Processors: Intel
• Models: Core i3, Core i5, Core i7, Core i9
• Supported CPU Generation: Coffee Lake
• Socket: 1151

Chipset

• Model: Intel B360

Memory

• Memory type: DDR4
• Quantity: 2 DIMM Slots
• Memory Speeds: 1866, 2133, 2400, 2666
• Memory Channels: Dual Channel

Internal Connectors

• PCI Express x16 3.0: 1 Slot
• SATA III 6Gb/s: 4 Port
• M.2 Type: 1 SATA III Port
• M.2 Slots: 0

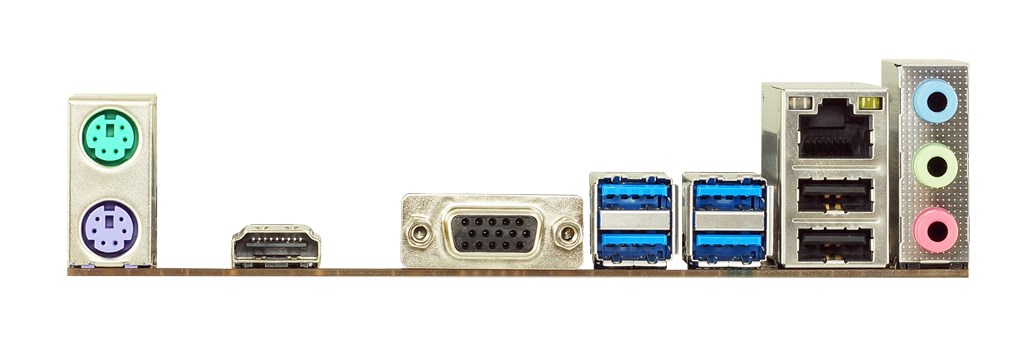

External Connectors

• Rear USB-A outputs: 2 USB 2.0 Ports, 4 USB 3.1 Ports
• Ethernet (LAN): 1
• Screen Connections: HDMI, VGA

Specifications

• RGB Lighting: No
• WiFi/Bluetooth: No

Sound

• Sound Card Channels: 7.1
• Additional Audio Connections: –

Top Specs

• Memory: 2x DDR4
