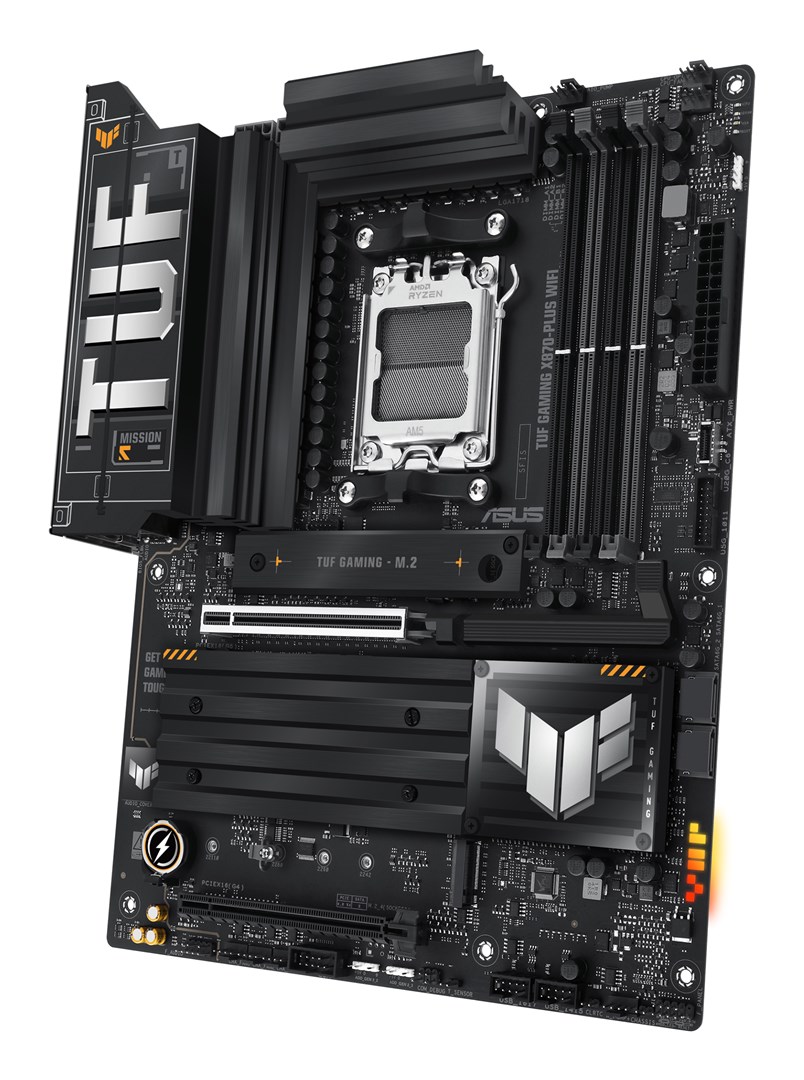

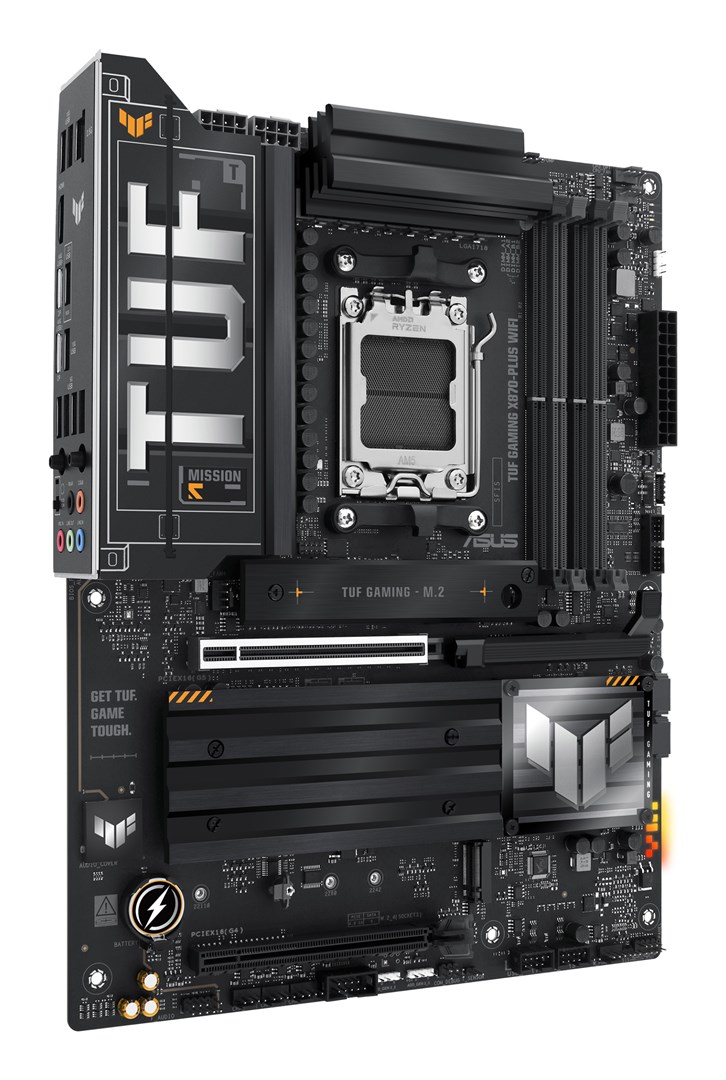

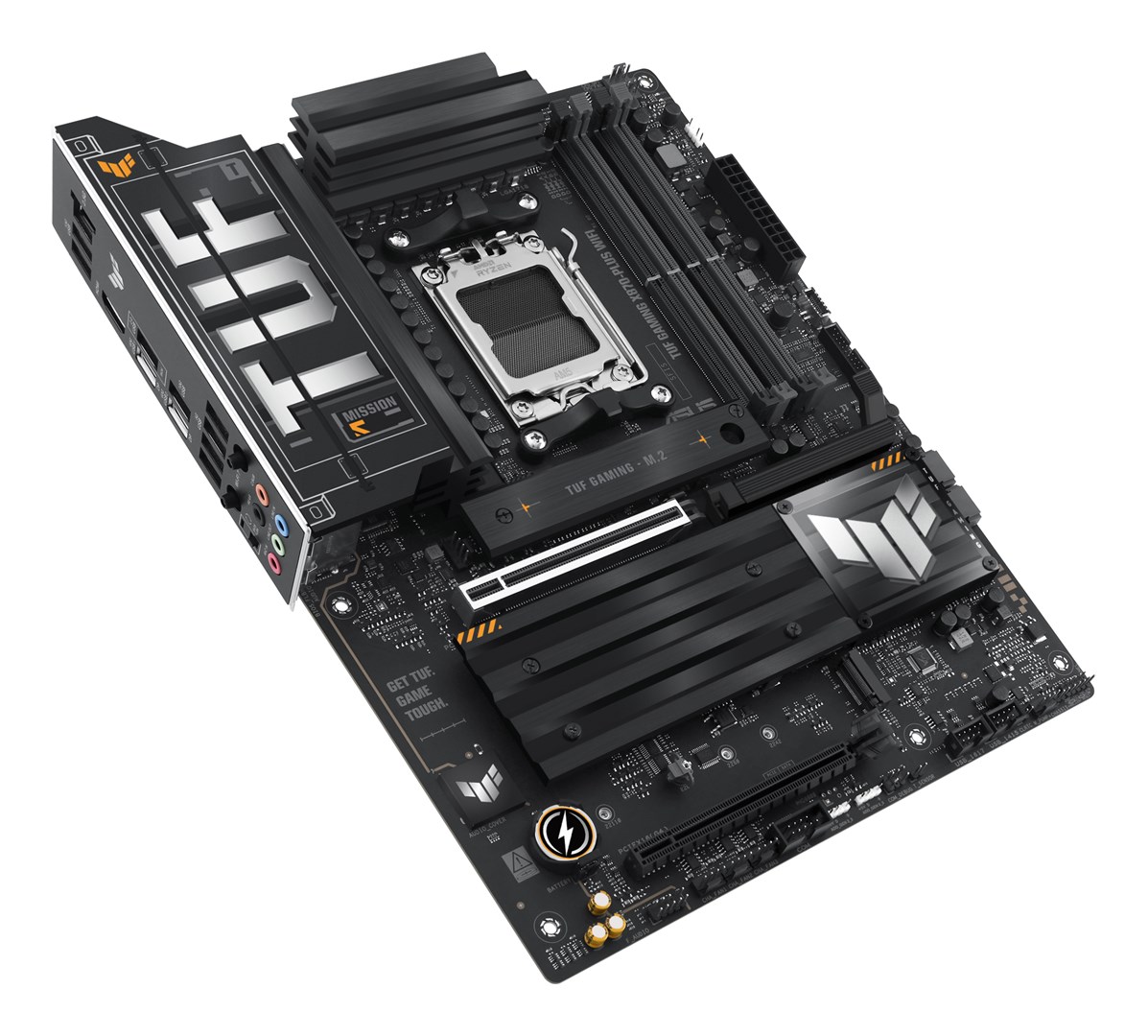

Asus TUF GAMING X870-PLUS WIFI Motherboard ATX with AMD AM5 Socket

The TUF Gaming X870-PLUS WiFi motherboard combines all the essential elements of the latest AMD Ryzen processors with gaming-ready features and proven durability. Built with military-grade components, an upgraded power solution, and a comprehensive cooling system, this motherboard offers stable and reliable performance for endless gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure they can withstand conditions where others might fail.

AI Advisor (Σύμβουλος AI)

Ο AI Advisor της ASUS είναι ένας τεχνικός εμπειρογνώμονας της ASUS που είναι πάντα διαθέσιμος για να απαντήσει στις ερωτήσεις σας. Οι κάτοχοι συμβατών μητρικών πλακετών ASUS μπορούν να αλληλεπιδράσουν με αυτή την τεχνολογία τεχνητής νοημοσύνης χρησιμοποιώντας φυσική γλώσσα για να μάθουν περισσότερα για το υλικό τους. Για τους αρχάριους DIY, μπορεί να παρέχει εύληπτες εξηγήσεις των λειτουργιών βελτιστοποίησης με ένα κλικ, όπως το AI Overclocking και το AI Cooling II, και για τους έμπειρους βετεράνους της κατασκευής υπολογιστών, μπορεί να προσφέρει καθοδήγηση και οδηγίες σχετικά με τις τελευταίες λειτουργίες που προσφέρει η ASUS.

UEFI BIOS

ASUS’s renowned UEFI BIOS provides everything you need to configure, enhance, and fine-tune your system. It offers intelligently simplified options for novice PC DIY enthusiasts and comprehensive features for seasoned veterans.

Premium Power Design

Stable power is vital for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of processors with a high core count. It features 16(80A) + 2(80A) + 1(80A) power stages that incorporate high and low side MOSFETs and drivers in packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability, and performance for both current and future AMD processors.

DRAM Overclocking Performance

The comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can harness the full potential of DDR5 modules, whether they come from a high-speed kit or an entry-level kit that would otherwise be locked.

M.2 PCIe 5.0 Support

This motherboard also features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps, while all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Front USB 20Gbps Type-C®

This motherboard features a front-panel USB 20Gbps Type-C® port for ultra-fast data transfers of up to 20Gbps. It also offers Power Delivery (PD) 3.0 technology for fast charging up to 30W.

BIOS FlashBack™

BIOS FlashBack™ simplifies BIOS updates. Simply load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button – no CPU or memory required.

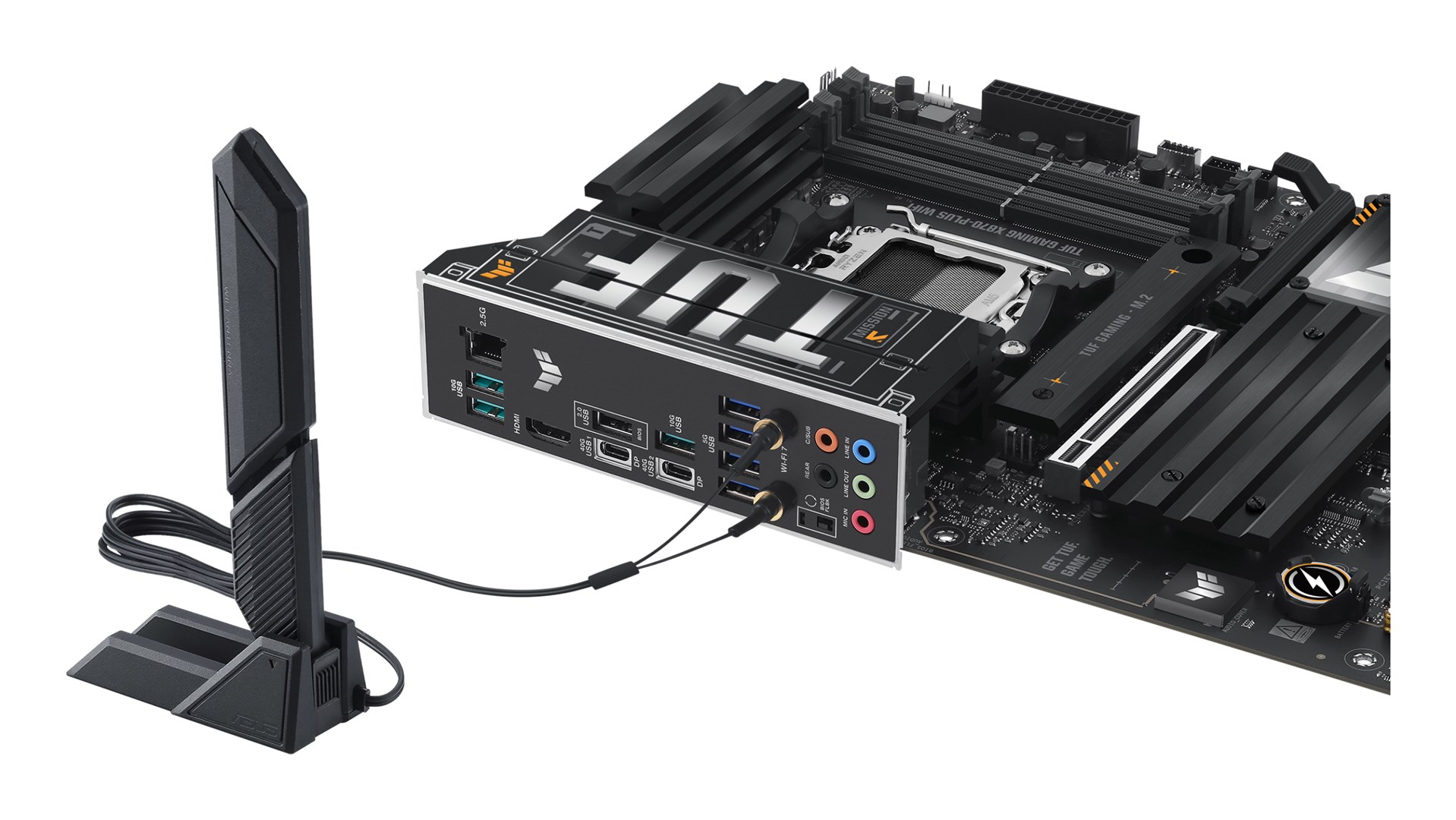

WiFi 7

Next-generation WiFi 7 supports a 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting the 2.4, 5, and 6 GHz bands for improved coverage and performance.

Realtek 7.1 Channel Sound

This motherboard uses an audio codec designed in close collaboration with Realtek – the Realtek ALC1220P. It features an unprecedented signal-to-noise ratio (SNR) of 120 dB for the stereo line-out and 113 dB SNR for the line-in, providing excellent audio quality. Additionally, an impedance sensing circuit automatically adjusts the gain to ensure the optimal volume range for your headphones.

AI Advisor (Σύμβουλος AI)

Ο AI Advisor της ASUS είναι ένας τεχνικός εμπειρογνώμονας της ASUS που είναι πάντα διαθέσιμος για να απαντήσει στις ερωτήσεις σας. Οι κάτοχοι συμβατών μητρικών πλακετών ASUS μπορούν να αλληλεπιδράσουν με αυτή την τεχνολογία τεχνητής νοημοσύνης χρησιμοποιώντας φυσική γλώσσα για να μάθουν περισσότερα για το υλικό τους. Για τους αρχάριους DIY, μπορεί να παρέχει εύληπτες εξηγήσεις των λειτουργιών βελτιστοποίησης με ένα κλικ, όπως το AI Overclocking και το AI Cooling II, και για τους έμπειρους βετεράνους της κατασκευής υπολογιστών, μπορεί να προσφέρει καθοδήγηση και οδηγίες σχετικά με τις τελευταίες λειτουργίες που προσφέρει η ASUS.

UEFI BIOS

ASUS’s renowned UEFI BIOS provides everything you need to configure, enhance, and fine-tune your system. It offers intelligently simplified options for novice PC DIY enthusiasts and comprehensive features for seasoned veterans.

Premium Power Design

Stable power is vital for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of processors with a high core count. It features 16(80A) + 2(80A) + 1(80A) power stages that incorporate high and low side MOSFETs and drivers in packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability, and performance for both current and future AMD processors.

DRAM Overclocking Performance

The comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can harness the full potential of DDR5 modules, whether they come from a high-speed kit or an entry-level kit that would otherwise be locked.

M.2 PCIe 5.0 Support

This motherboard also features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps, while all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Front USB 20Gbps Type-C®

This motherboard features a front-panel USB 20Gbps Type-C® port for ultra-fast data transfers of up to 20Gbps. It also offers Power Delivery (PD) 3.0 technology for fast charging up to 30W.

BIOS FlashBack™

BIOS FlashBack™ simplifies BIOS updates. Simply load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button – no CPU or memory required.

WiFi 7

Next-generation WiFi 7 supports a 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting the 2.4, 5, and 6 GHz bands for improved coverage and performance.

Realtek 7.1 Channel Sound

This motherboard uses an audio codec designed in close collaboration with Realtek – the Realtek ALC1220P. It features an unprecedented signal-to-noise ratio (SNR) of 120 dB for the stereo line-out and 113 dB SNR for the line-in, providing excellent audio quality. Additionally, an impedance sensing circuit automatically adjusts the gain to ensure the optimal volume range for your headphones.

Product Details

• Size: ATX
• Type: Desktop

Processor

• Supported Processors: AMD
• Models: Ryzen
• Supported CPU Generation: Zen 4, Zen 5
• Socket: AM5

Chipset

• Model: AMD X870

Memory

• Memory type: DDR5
• Quantity: 4 DIMM Slots
• Memory Speeds: 5600, 5200, 4800, 4400
• Memory Channels: Dual Channel

Internal Connectors

• PCI Express x16 4.0: 2 Slot
• PCI Express x16 5.0: 1 Slot
• SATA III 6Gb/s: 2 Port
• M.2 Type: 2 PCIe 5.0 Ports, 3 PCIe 4.0 Ports
• M.2 Slots: 0

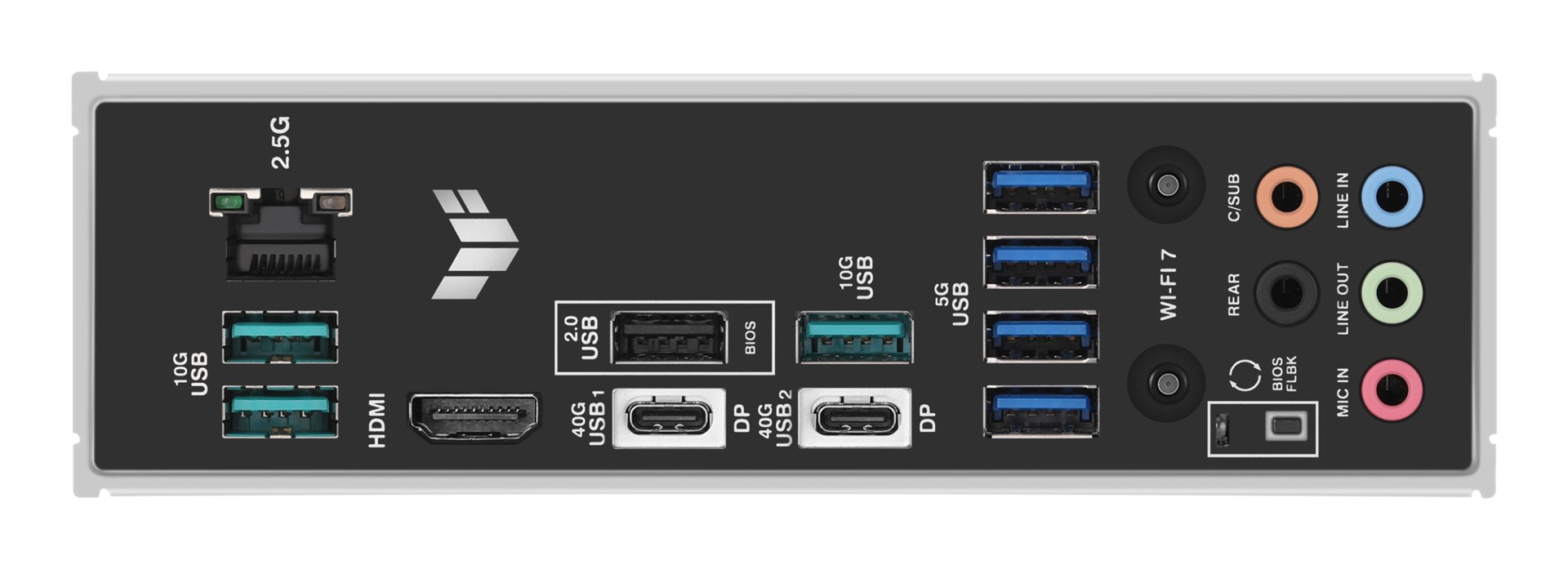

External Connectors

• Rear USB-A outputs: 1 USB 2.0 Port, 3 USB 3.2 Ports, 4 USB 3.0 Ports
• Rear USB-C outputs: 2 USB 4.0 Ports
• Ethernet (LAN): 1
• Screen Connections: HDMI

Specifications

• RGB Lighting: Yes
• WiFi/Bluetooth: Yes
• Extra: Bios Flashback

Sound

• Sound Card Channels: 7.1
• Additional Audio Connections: –

Top Specs

• Memory: 4x DDR5
