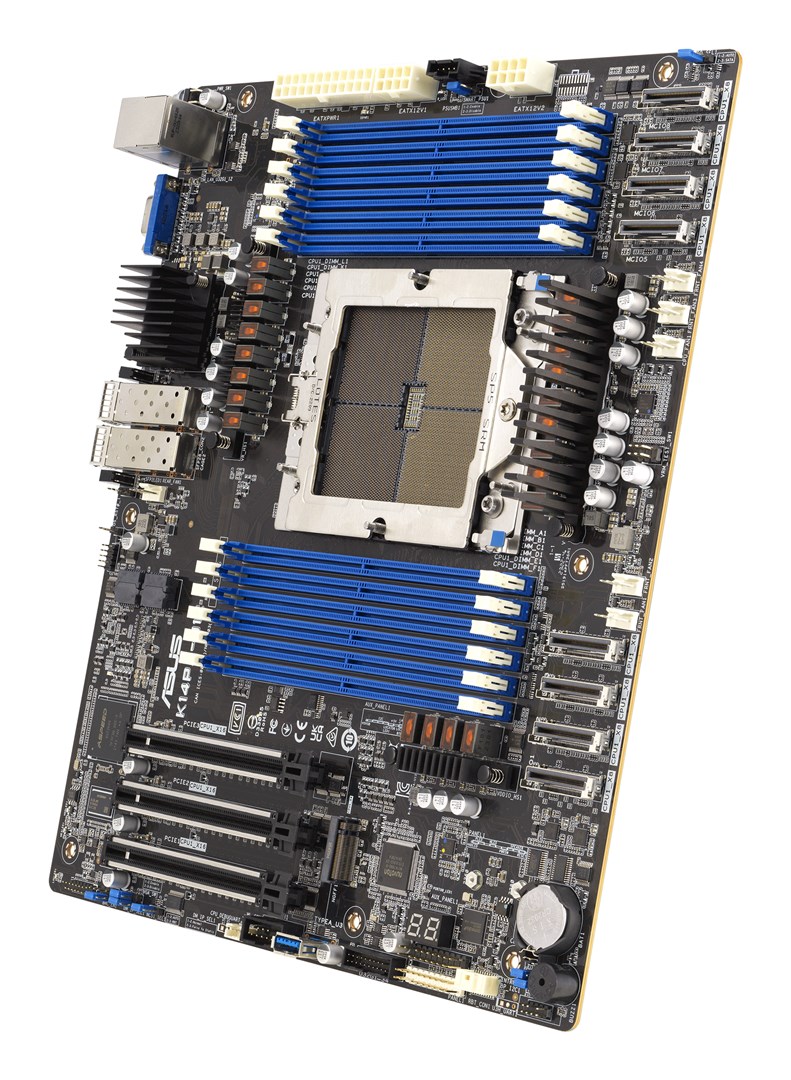

Asus K14PA-U12 Motherboard SSI CEB with AMD SP5 Socket

The motherboard Asus K14PA-U12 is designed for use in servers and workstations, offering excellent performance and flexibility.

Benefits

Processor: Supports the new AMD EPYC™ 9004 Series processors, offering up to 128 Zen 41 cores.
RAM: Features 12 DDR5 DIMM slots supporting RDIMM/3DS RDIMM memory, with speeds up to 4800MHz and total capacity up to 3TB1.
Network: Includes two SFP28 25 Gbps Ethernet ports with teaming support, offering ultra-high network speeds1.
Graphics and Expansion: Supports up to two dual-slot GPUs and offers flexible expansion options with eight MCIO slots, supporting up to 16 NVMe drives1.
Management: Integrates the ASPEED AST2600 controller for out-of-band management and the ASUS ASMB11-iKVM for remote management1.

The K14PA-U12 is ideal for applications requiring high performance and large storage capacity, such as databases and content creation. Support for AMD 3D V-Cache™ Technology enhances performance and multitasking, while the high network speed and expansion flexibility make the K14PA-U12 an excellent choice for various business needs.

Benefits

Processor: Supports the new AMD EPYC™ 9004 Series processors, offering up to 128 Zen 41 cores.

RAM: Features 12 DDR5 DIMM slots supporting RDIMM/3DS RDIMM memory, with speeds up to 4800MHz and total capacity up to 3TB1.

Network: Includes two SFP28 25 Gbps Ethernet ports with teaming support, offering ultra-high network speeds1.

Graphics and Expansion: Supports up to two dual-slot GPUs and offers flexible expansion options with eight MCIO slots, supporting up to 16 NVMe drives1.

Management: Integrates the ASPEED AST2600 controller for out-of-band management and the ASUS ASMB11-iKVM for remote management1.

The K14PA-U12 is ideal for applications requiring high performance and large storage capacity, such as databases and content creation. Support for AMD 3D V-Cache™ Technology enhances performance and multitasking, while the high network speed and expansion flexibility make the K14PA-U12 an excellent choice for various business needs.

Product Details

• Size: SSI CEB
• Type: Desktop

Processor

• Supported Processors: AMD
• Models: Epyc
• Socket: SP5

Memory

• Memory type: DDR5
• Quantity: 12 DIMM Slots
• Memory Speeds: 4800

Internal Connectors

• PCI Express x16 5.0: 3 Slot
• SATA III 6Gb/s: 4 Port
• M.2 Type: 1 PCIe 5.0 Port
• M.2 Slots: 0

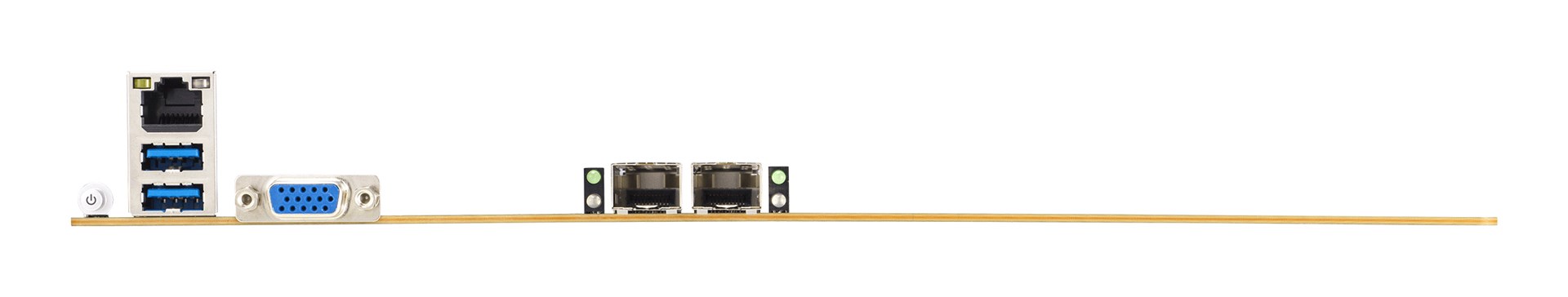

External Connectors

• Rear USB-A outputs: 2 USB 3.2 Ports
• Rear USB-C outputs: –
• Ethernet (LAN): 1
• Screen Connections: VGA

Specifications

• RGB Lighting: No
• WiFi/Bluetooth: No

Sound

• Sound Card Channels: 7.1
• Additional Audio Connections: –

Top Specs

• Memory: 12x DDR5

• Processor: Supports the new AMD EPYC™ 9004 Series processors, offering up to 128 Zen 41 cores.
• RAM: Features 12 DDR5 DIMM slots supporting RDIMM/3DS RDIMM memory, with speeds up to 4800MHz and total capacity up to 3TB1.
• Network: Includes two SFP28 25 Gbps Ethernet ports with teaming support, offering ultra-high network speeds1.
• Graphics and Expansion: Supports up to two dual-slot GPUs and offers flexible expansion options with eight MCIO slots, supporting up to 16 NVMe drives1.
• Management: Integrates the ASPEED AST2600 controller for out-of-band management and the ASUS ASMB11-iKVM for remote management1.
• Processor: Supports the new AMD EPYC™ 9004 Series processors, offering up to 128 Zen 41 cores.
• RAM: Features 12 DDR5 DIMM slots supporting RDIMM/3DS RDIMM memory, with speeds up to 4800MHz and total capacity up to 3TB1.
• Network: Includes two SFP28 25 Gbps Ethernet ports with teaming support, offering ultra-high network speeds1.
• Graphics and Expansion: Supports up to two dual-slot GPUs and offers flexible expansion options with eight MCIO slots, supporting up to 16 NVMe drives1.
• Management: Integrates the ASPEED AST2600 controller for out-of-band management and the ASUS ASMB11-iKVM for remote management1.
