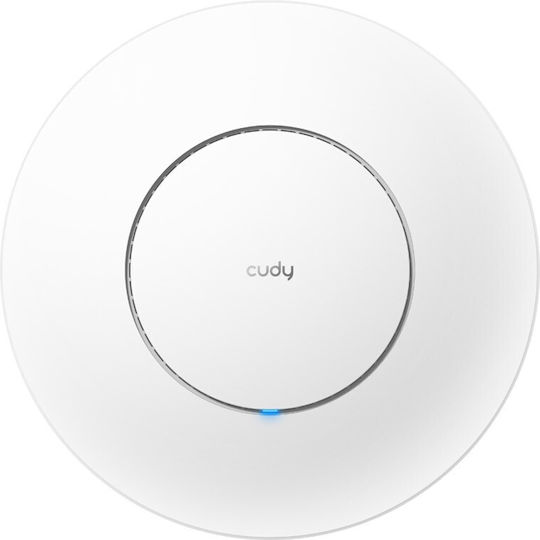

Cudy AP11000 wireless access point 5760 Mbit/s White Power over Ethernet (PoE)

The product is an Access Point that supports Ethernet LAN data speeds up to 10000 Mbit/s. It operates on 2.4 GHz and 6 GHz frequencies, offering a maximum data transfer speed of 5760 Mbit/s on the 6 GHz frequency and up to 4320 Mbit/s on 5 GHz. It is also equipped with MIMO, supporting Multi User MIMO, and BeamForming for improved signal efficiency.

Pure 6 GHz for professional-grade connectivity

The extended 6 GHz band offers up to 2.4 times more channels compared to 5 GHz, allowing the AP11000 to deliver incredible speeds and support more client devices in interference-free environments. Ideal for high-density business spaces.

Ultra Performance with 10G SFP+ Fiber Uplink

With 10G SFP+ uplink support, the AP11000 exceeds the limits of standard Gigabit connections, ensuring high transfer speed, low latency via fiber optics, and offering a reliable, future-proof solution for business and professional networks.

Pure 6 GHz for professional-grade connectivity

The extended 6 GHz band offers up to 2.4 times more channels compared to 5 GHz, allowing the AP11000 to deliver incredible speeds and support more client devices in interference-free environments. Ideal for high-density business spaces.

Ultra Performance with 10G SFP+ Fiber Uplink

With 10G SFP+ uplink support, the AP11000 exceeds the limits of standard Gigabit connections, ensuring high transfer speed, low latency via fiber optics, and offering a reliable, future-proof solution for business and professional networks.

Technical Specifications

• Frequency: Tri Band (2.4 & 5 & 6GHz)
• Maximum WLAN Speed: 11000 Mbps
• Wi-Fi Generation: Wi‑Fi 7
• IEEE Networking Standards: 802.11 b/g/n, 802.11a, 802.11ac, 802.11ax, 802.11be
• LAN speed: 1000 Mbps
• Wi-Fi Mesh Network: Yes
• Ethernet Backhaul: No
• Antenna Power (max): 5.8 dBi

General Characteristics

• Placement: Indoor
• Ethernet Ports: 1
• Packaging: Single Kit

Installation Type

• Ceiling: Yes
• Wall: Yes
• Board games: No
